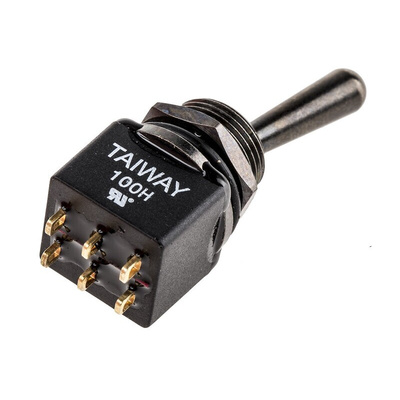

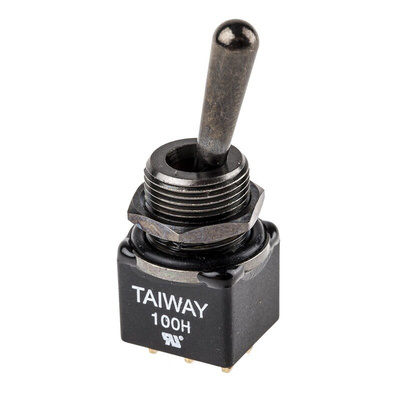

RS PRO Toggle Switch, PCB Mount, On-On, DPDT, Solder Terminal, Тумблер

RS PRO DPDT Toggle Switch, Latching, IP67, PCB

This RS PRO toggle switch provides a compact solution for equipment used in harsh environments. It's sealed to a high Ingress Protection (IP) rating of IP67, so you can use it where dust and water are present. The switch is salt-spray corrosion-tested to ASTM (American Society for Testing and Materials) standard B117 and front 'O' ring seals protect against ingress from flowing water – this means it's suitable for marine applications.
Made with a double shell that's flame retardant and heat stabilised to standard UL 94V-0, this switch can be installed in cockpits and other critical systems. It has a miniature toggle size, so it can be fitted into a small space on a printed circuit board.
Install this toggle switch on heavy industrial machinery or on ships and oil rigs. This switch has been rigorously tested to meet US military environment standard MIL-STD-202F for small electrical components, so it's also suitable for use on defence control panels.

Features and Benefits

• Actuator length of 18 mm
• Brass actuator material
• Double pole, double throw (DPDT) contact configuration
• Contact current rating of 5 A at 250 V AC
• Silver contact material
• Contact resistance of 10 mΩ
• IP67 rated
• Operating temperature range of -30°C to +85°C
• Mechanical life of 50000 cycles
• Printed circuit board (PCB) mounting type
• US MIL-STD-202F standards met
• Latching switch operation
• Solder terminal type

RS Pro Datasheet
