RS PRO Toggle Switch, PCB Mount, (On)-Off-(On), SPDT, Solder Terminal, Тумблер

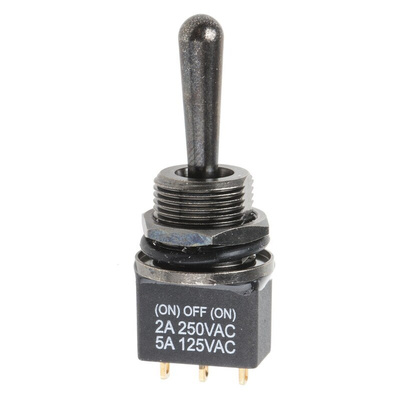

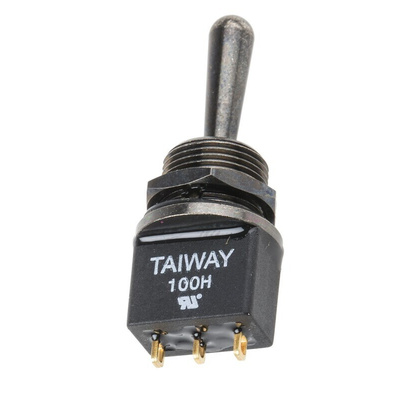

RS PRO SPDT Toggle Switch, (On)-Off-(On), IP67, PCB

Complete your electrical circuit with the RS PRO SPDT toggle switch. It's used in domestic and commercial applications, such as heating, lighting and small equipment manufacturing. This component has a switch operation of (On)-Off-(On), and a resistance of 10 mΩ.

There are two 'O' rings at the front of this switch, designed to keep it sealed during operation. It also has a fully sealed back, so it's protected from flowing water. The contacts are suitable for both low-level switching (10 mA 50 mV – 10 μA, 5 V dc minimum) and power applications (3 A @ 250 V AC). and the unit operates safely from -30°C to +85°C.

Part of our RS PRO collection, the switch been designed for reliability. It's contained within a double shell case for mechanical strength and high electrical insulation. This switch has a mechanical lifespan of around 50,000 cycles and is IP67 rated, so it's resistant to dust and water.

Features and Benefits

• Toggle switch
• SPDT (single pole double throw) contacts
• Switch operation of (On)-Off-(On)
• Contact current rating of 5 A @ 250 V AC
• PCB (printed circuit board) mounted
• Solder terminals
• IP rating of IP67 for protection against dust and water
• Actuator length of 18 mm
• Brass contact actuator
• Resistance of 10 mΩ
• Operating temperature range of -30°C to +85°C
• Silver contacts
• Mechanical life of 50,000 cycles
• MIL-STD-202F compliant for safety and quality
