ATS01N125FT, Schneider Electric Soft Start, Soft Start, 11 kW, 110 → 480 V ac, 1, 3 Phase, IP20, Устройство плавного пуска

Schneider Electric Soft Starters - Altistart 01 Series

Created and designed to operate as a torque limiter on starting, or as a soft start or soft stop unit for asynchronous motors. This range of soft starters enhances the starting performance of asynchronous motors by allowing them to start smoothly, gradually and in a controlled manner. They are compact and easy to install, the Altistart 01 series can be mounted side by side.

Features & Benefits

• Prevents mechanical shocks


• Reduces wear and tear


• Reduces the amount of maintenance work


• Reduces production town time which in turn keeps production level up


• Because the Altistart 01 series limits the starting torque and current peas on starting machines which do not require a high starting torque, it is the perfect solutions for applications such as conveyors, pumps, fans, compressors, small cranes, conveyor belts and much more


• Complies and adheres to IEC/EN 60947-4-2, carries UL, CSA, C-Tick, CCC certifications and e marking


• There are three ranges that create the Altistart 01 series, these are ATS 01N1, ATS 01N2 and ATSU 01N2

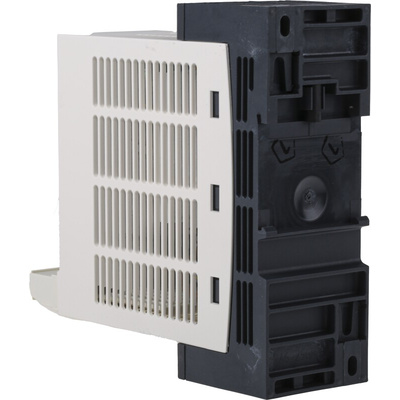

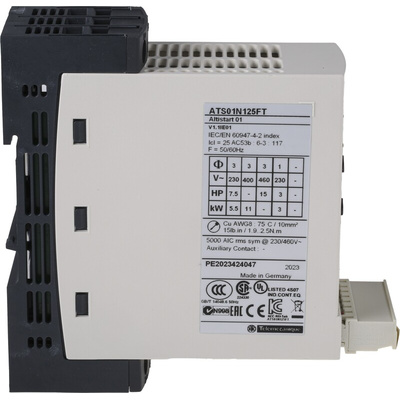

ATS01N125FT Soft Starter

• The main function of this component type is to perform as a soft starter or soft stop for one-phase loads


• Forms part of the Altistart 01 product range


• Commonly referred to as ATS01


• Features a supply voltage of 110...480 V - 10...10 %


• The starter rating is 25 A


• Has a utilisation category of AC-53B conforming to EN/IEC 60947-4-2


• The current consumption is 125 A at nominal load


• Starts with a voltage ramp


• Power dissipation - 1 W at full load and at end of starting, 126 W in a transient state


• Dimensions - H124 mm X W45 mm X D131 mm


• 1 greed LED will display when the starter is powered up and 1 yellow LED will display when the nominal voltage has been reached
