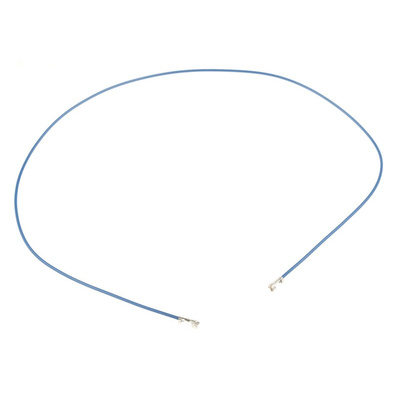

01SPHSPH-26L-300, JST Cable assembly with a Crimp and a Crimp

8201412
Номер производителя: 01SPHSPH-26L-300 Производитель: JST
Цена за шт. (норма упаковки 10 шт)
75.20 руб. *

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

PH Series Loose Contacts and Cable Assemblies

Stock Number 353-1276 is the loose version of the reeled contacts SPH-002T-P0.5S in a Bag of 50.
Stock Number 820-1456 is the loose version of the reeled contacts SPH-002T-P0.5S in a Bag of 100.
For the PH Hand Crimp Tool see Stock No. 688-0877 .

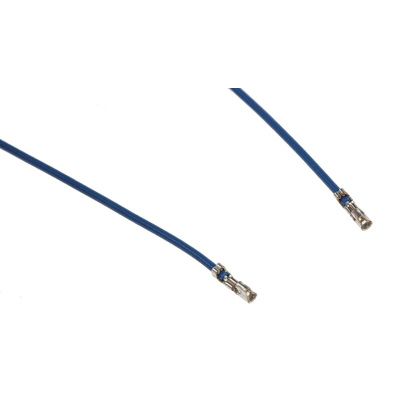

The PH Series Cable Assemblies have SPH-002T-P0.5 contacts on both ends:
820-1419 is 150 mm long.
820-1412 is 300 mm long.

Product Specification
Contact: BPH-002T-P0.5S

Wire range
0.05 → 0.22mm2, AWG #30 to 24

Wire sheath diameter
0.9 → 1.5 (mm)
Contact material Phosphor bronze, tin-plated
Note

The 'B' in the manufacturers part number BPH-002T-P0.5S shows that the product is a loose piece cut from a reel with manufacturers part number SPH-002T-P0.5S.

2.0mm Wire-to-Board Connector (JST) PH Series

The JST Wire-to-Board PH Series are thin, low-profile 2mm pitch connectors. The PH Series is designed to meet the demand for high-density connection of internal wires to printed circuit boards with a 8.0 mm height after mounting by 4.5mm wide for Top Entry and 9.6 mm wide after mounting by 4.8 mm high for Side Entry.

Техническая спецификация
pdfPH Series Wire to Board 2.0mm pitch Connector - Catalogue Pages

Разъем A:
Обжимной соединитель
Разъем B:
Обжимной соединитель
