01SPHSPH-26001L150, JST Female SPH to Female SPH Crimped Wire, 150mm, 0.14mm², Blue, Кабельная сборка

PAD Contact and Double Ended Wire with Contacts

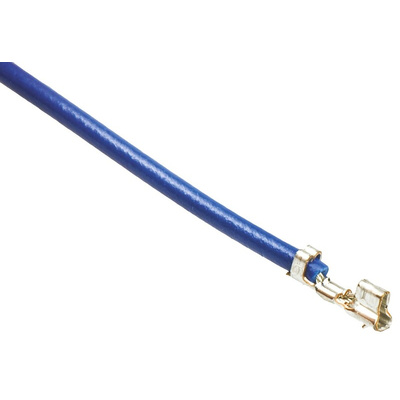

820-1740 is a PAD Series socket contact manufactured from Phosphor Bronze and Tin plated for wire size 0.13∼0.33 mm² (26∼22 AWG) with an insulation diameter of 1.0∼1.5 mm.

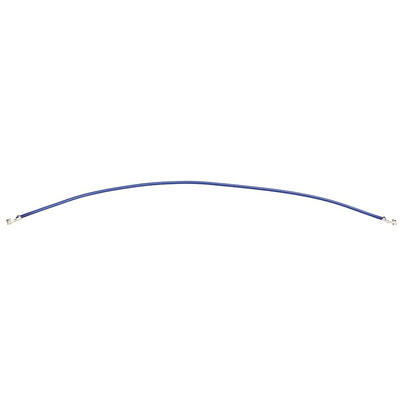

PAD Series Cable Assemblies have SPH-001T-P0.5L contacts crimped on both ends for use in PADP Series Receptacle Housings, see stock number 820-1728 typical.
820-1743 is 150 mm long.
820-1747 is 300 mm long.

2.0mm JST PAD Connector

The 2.0mm PAD Series Wire-to-Board Connectors from JST are dual row for high density applications and provide: secure locking, polarization, an insertion guide and reliable contacts with long dimples for continuity under adverse conditions.

PAD Series Wire to Board 2.0mm pitch Connector - Catalogue Pages

Datasheet
