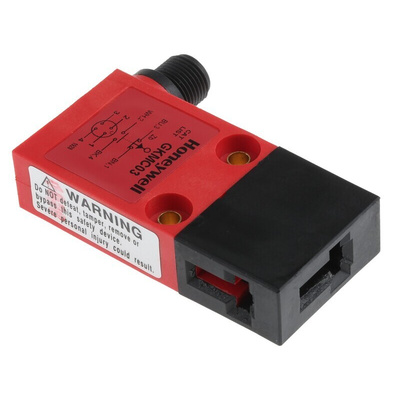

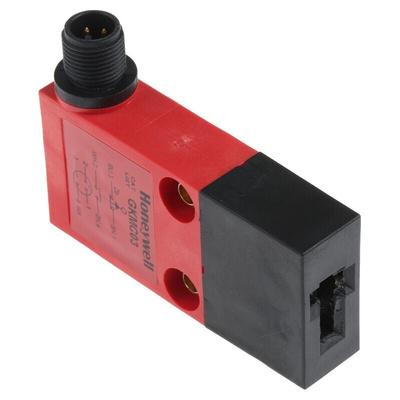

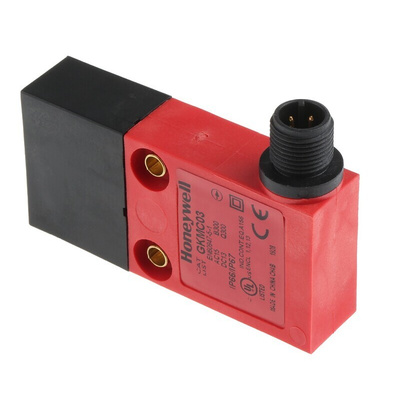

GKMC03, Honeywell GKM Safety Interlock Switch, 1NC/1NO, Keyed Actuator Included, Glass Filled PET, Выключатель

GKM Series, Miniature

Stackable design allows side by side mounting in a compact form
Small door swing radius allows use down to 160mm
IP67 protection, suitable for wet applications
Operating temperature -25 °C → +85 °C
Dimensions: H70mm x W34mm x D16mm

Note

Actuator sold separately

Standards

IEC/EN60947-5-1, EN1088, EN60504, UL508, CSA22-2-14, UL748C

Approvals

UL, CSA, CE

Honeywell Miniature Safety Switch, NO/NC, 250V DC - GKM Series - GKMC03

This miniature interlock switch from Honeywell keeps small enclosures operating safely. Its compact width of 34mm means you can install it in tight spaces and use it with a door swing radius as small as 160mm. You can mount the switch on its own or side-by-side with multiple switches, giving you greater flexibility in use. This also reduces downtime, as the other switches keep working in the event that one experiences a fault. The switch is key-lockable with your choice of actuator (147-528 or 147-540), making it safe for use in hazardous areas. Simply remove the dust cap to mount it.

Features & Benefits

• Red in colour for easy identification
• Broad operating temperature range of -25°C to +85°C, so it can withstand harsh environmental conditions
• Robust case made from glass-filled PET (polyethylene terephthalate) thermoplastic for durability

Applications

• Safety gates and guards
• Machinery enclosures
• Agricultural machinery

Is this safety switch suitable for applications where moisture is present?

Yes. This switch has a high ingress protection rating of IP67, so it's resistant to strong jets of water and is safe to be immersed in liquid for a short amount of time. It's also fully dust-tight, so it's designed for demanding applications.
