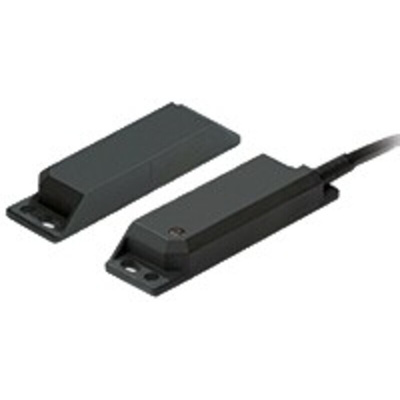

F3S-TGR-NLPU-21-10, Omron F3S-TGR-N_U Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, 10m Cable, Выключатель

F3S-TGR Tamper Resistant Non Contact Switch

The Omron F3S-TGR-N series of non-contact switches use a design based on RFID technology. They have unique coding, only one actuator fits to the code of the sensor, which makes them ideal for applications that require high tamper resistance.

Connect up to 20 switches in series
LED for easy diagnosis
Suitable for high pressure cleaning, CIP and SIP processes
Flying lead IP69K, M12 connector IP67
Electronic output (potential-free optocoupler output)
UL approved polyester
Conforms to safety categories up to PLe acc. EN ISO 13849-1

Note

For suitable controller see the G9SA or G9SB from Omron, or the NE1A DeviceNet system.

Standards

EN standards certified by TÜV Rheinland, EN 954-1, EN ISO 13849-1, EN 60204-1, EN/IEC 60947-5-3, UL 508, CSA C22.2, BS 5304, EN 1088-1 conformance.

Supplied with

Actuator.

Datasheet

Omron Machine Safety
