2904374, Phoenix Contact UNO-PS/1AC/5DC/25W Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 5V dc dc Output, 5A, Блок питания

Phoenix Contact UNO Single Phase Power Supplies

The Phoenix Contact UNO PSU’s have basic functionality, making them the ideal solution for loads up to 240 W, particularly in compact control boxes thanks to their high power density and slim dimensions.
The DIN rail mounting, power supply units have a high degree of efficiency and low idling losses ensuring a high level of energy efficiency.

Features and Benefits:

• Save energy thanks to particularly low no-load losses and high efficiency
• Slim line housing in 22.5 mm, 35 mm and 55 mm designs
• Housing depth of just 84 mm
• Temperature range from -25 °C to +70 °C makes them suitable for outdoor installation
• Available in various performance classes and overall widths
• AC input: single-phase
• DC output: power up to 240 W

How do I wire a DIN rail power supply?

The UNO power supply unit's feature input and output connections that are screw connections. Simply strip 8mm from your cable and insert it either into the dedicated plus or minus ports and screw-down the M3 screw to ensure a tight connection. Give a small tug on the cable once installed to ensure it's tight.

What are DIN-rail power supplies used for?

Typically these power supplies are mounted into cabinets and are used in industrial circumstances. They can be used for automation, machinery or any project that has modules that are mounted on DIN-rails.

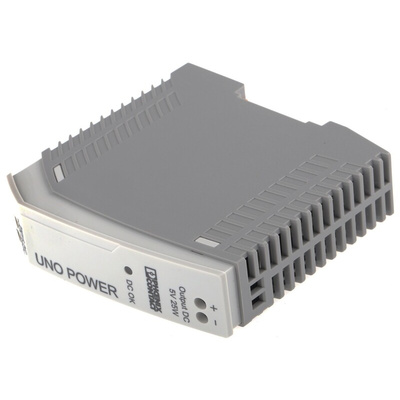

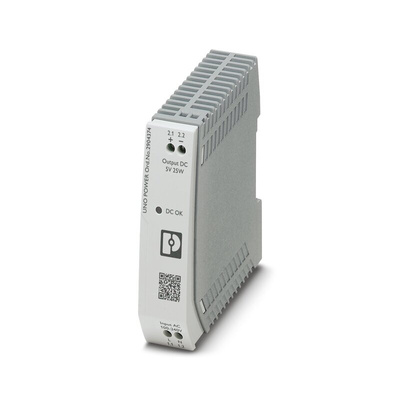

Phoenix Contact Switch Mode Power Supply, 5A, 5V DC - UNO-PS/1AC/5DC/25W - 2904374

Convert an alternating current (AC) input into a reliable direct current (DC) output with this switch mode power supply from Phoenix Contact. Its low idling losses offer maximum energy efficiency for high power density in industrial process control applications.
The power supply features transient surge protection for improved electrical safety and is insensitive to voltage fluctuations in a supply network. Its screw connectors hold wiring firmly without causing damage to your conductors, reducing the need for regular maintenance. As it's easy to snap onto a DIN rail, installation is quick and tool-free.
This switch mode power supply has an IP20 (ingress protection) rating, meaning it's protected against touch and large dirt particles. It's also resistant to shock and vibration, so you can rely on it for use with industrial relays, motors and sensors.

• Compact dimensions of 90 (H) x 22.5 (W) x 84mm (D) for easy integration into busy systems
• Wide operating temperature range of -25°C to +70°C for compatibility with both hot and cold environments
• Meets EN 50178/VDE 0160 (European Norm) safety standards for electronic equipment used in power installations
