2902997, Phoenix Contact UNO-PS/1AC/12DC/100W Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 12V dc dc Output,, Блок питания

Phoenix Contact UNO Single Phase Power Supplies

The Phoenix Contact UNO PSU’s have basic functionality, making them the ideal solution for loads up to 240 W, particularly in compact control boxes thanks to their high power density and slim dimensions.
The DIN rail mounting, power supply units have a high degree of efficiency and low idling losses ensuring a high level of energy efficiency.

Features and Benefits:

• Save energy thanks to particularly low no-load losses and high efficiency
• Slim line housing in 22.5 mm, 35 mm and 55 mm designs
• Housing depth of just 84 mm
• Temperature range from -25 °C to +70 °C makes them suitable for outdoor installation
• Available in various performance classes and overall widths
• AC input: single-phase
• DC output: power up to 240 W

How do I wire a DIN rail power supply?

The UNO power supply unit's feature input and output connections that are screw connections. Simply strip 8mm from your cable and insert it either into the dedicated plus or minus ports and screw-down the M3 screw to ensure a tight connection. Give a small tug on the cable once installed to ensure it's tight.

What are DIN-rail power supplies used for?

Typically these power supplies are mounted into cabinets and are used in industrial circumstances. They can be used for automation, machinery or any project that has modules that are mounted on DIN-rails.

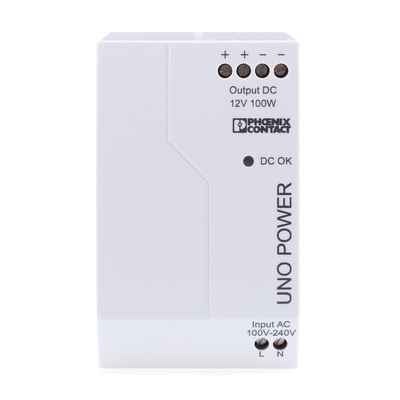

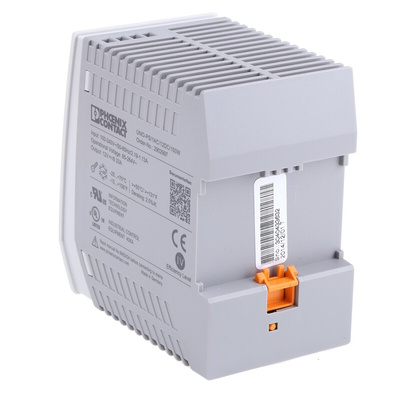

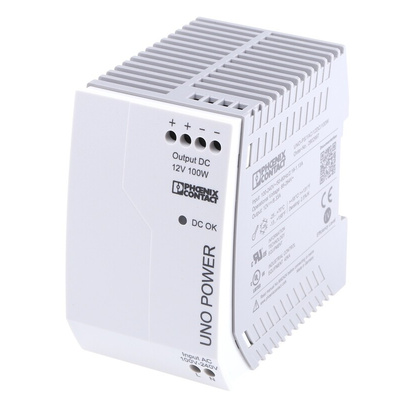

Phoenix Contact Switch-Mode DIN Rail Power Supply Unit, 2 Outputs, 100W Power Rating - UNO-PS/1AC/12DC/100W - 2902997

Provide reliable energy to your DIN-rail-mounted equipment with this power supply unit from Phoenix Contact. It works by converting AC source voltages ranging from 85 to 264V to a stable 12V DC output you can devices can use. It delivers up to 100W, so you can use it to power multiple items at the same time.
The unit can be connected either in series or in parallel, making it a versatile solution to suit your design specifications. Its robust thermoplastic housing provides impact and abrasion resistance, so it's a practical choice for use in harsh environments. For improved electrical safety, an internal 4A slow-blow fuse cuts power to the device in the event of a short circuit, while a varistor shields it from surge currents, preventing damage to connected components. This power supply is commonly used in factory automation and power distribution applications.

• Slim width of 55mm to take up minimal space in busy enclosures
• DIN rail mounting is simple and doesn't need special tools, saving time and effort
• IP20 rating indicates it's touch-proof and protected from objects larger than 12mm in size
