308-31800 HIS-3-18/6-PO-X-BK, HellermannTyton Heat Shrink Tubing, Black 19.1mm Sleeve Dia. x 4m Length 3:1 Ratio, HIS-3 Series, Термоусадочная трубка

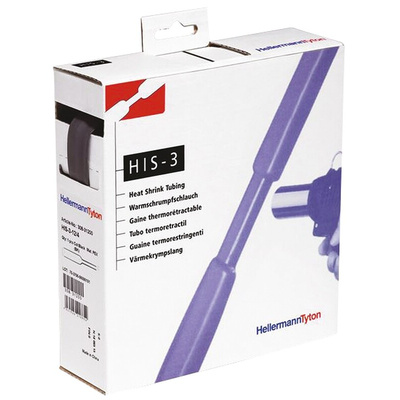

HIS-3 Dispenser Packs

HIS-3 unlined tubing provided in a dispenser pack. This can be used for general purpose electrical insulation.

Unlined tubing
Provided in dipenser packs
High shrink ratio (3:1) tubing
Fits highly variable substrate dimensions
Corrosion and mechanical abrasion protection
Identification colour

Standards

RoHS, SAE-AMS-DTL-23053/5 Class 1 and 3, SAE-AMS-DTL-23053/5 Class 2 (clear), UL224 125°C 600V, VW-1, CSA

HellermannTyton Heat Shrink Tubing, 4m (L) x 18mm (D), Polyolefin Cross-Linked Material, Black Colour - HIS-3 Series - 308-31800 HIS-3-18/6-PO-X-BK

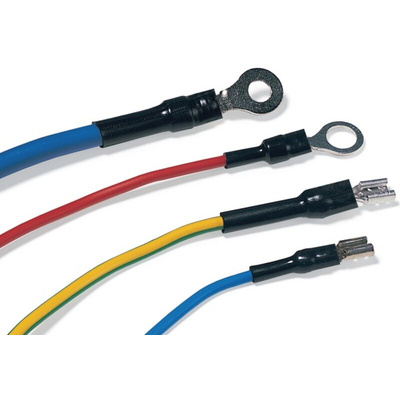

Want an easy way to boost the protection of your cables? Use this heat shrink tubing from HellermannTyton. Its 18mm diameter means it comfortably fits around larger bundles of wires. As it has a 3:1 shrink ratio, you can reduce it down to 6mm by simply applying +100°C heat with a gun. Once set, this rugged component has a broad operating temperature range of -55°C to +135°C to suit demanding conditions.

Features & Benefits

• High 20kV/mm dielectric strength fully insulates electric cables to reduce the risk of shocks
• Flexible POX material shrinks down over any shape for versatile use
• Loses just 5% of length after shrinking to maximise coverage

Applications

• Telecommunications networks
• Manufacturing sector
• Energy industry

Is this tubing fire-proof?

This is a flame-retardant option that limits the spread of fire.
