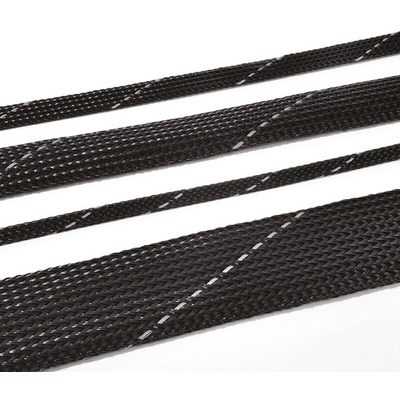

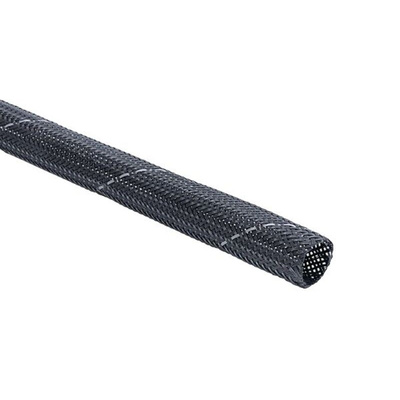

170-30814 HEGPV008-PBT-BK, HellermannTyton Braided PBT Black with White Cable Sleeve, 8mm Diameter, 400m Length, Кабельная муфта

Helagaine Flame Retardant Braided Sleeving

The helagiane flame retardant sleeves can be used whereever fire protection is important. Control cabinets, robotics and automatic equiment are all examples of the areas that can use the sleeving. It is also suitable for the railway vehicle manufacturing industry due to its conformity to DIN5510-2 and NFF-16 101.

Sturdy polyester material
Self extinguishing
Highly flexible
Abrasion resistance
High surface coverage

Standards

RoHS, UL94 V0, FMVSS 302, DIN 5510-2, NF F 16-101, CEN TS 45545-2:2009

HellermannTyton Cable Sleeve, 400m (Length) x 8mm (Diameter), Black with White Colour - Helagaine Series - 170-30814 HEGPV008-PBT-BK

Need to protect wires in harsh conditions? Slip them into this cable sleeve from HellermannTyton. It's made from durable PBT, which stands up to impacts and abrasion so your conductors stay safe in tough settings. As it accommodates cables with a diameter between 7 and 13mm, this is a versatile pick. You can also use it to consolidate multiple wires into a single bundle to keep your setup neat and tidy.

Features & Benefits

• Supplied on a 400m reel so you have plenty for multiple jobs
• Braided design means it's flexible and able to handle torsional stress
• Wide operating temperature range of -50°C to +150°C so it's reliable in extreme environments

Applications

• Factory electronics
• Computer networks
• Telecommunications systems

Does this product have any fire safety features?

Yes. It's made from flame-retardant material that self-extinguishes in under 10 seconds, so won't contribute to a fire.
