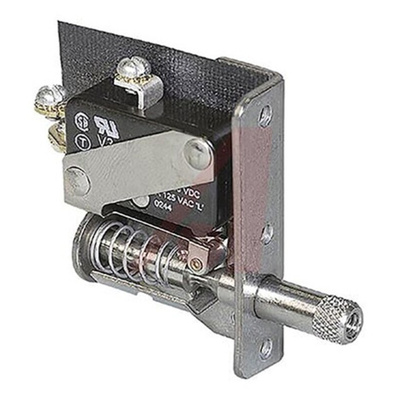

13AC1, Honeywell Rod Door Micro Switch, Screw Terminal, 15 A @ 250 V ac, SP-CO, Микропереключатель

Honeywell AC Series Door Switches

The Micro Switch™ AC series door interlock switches have been designed for simple or precision on/off applications. They enable circuit testing with POWER ON by manually pulling a rod actuator to the maintained-ON position. Closing the door resets the switch.

Potential Applications:
Appliances
Vending machines
Office equipment
Computer/business equipment
Test instruments
Medical/dental equipment
Communications equipment
HVAC equipment

Features:
Automatically cuts power when service door or drawer is opened
Choice of momentary, maintained or pull-to-cheat actuation
Versatile mounting bracket for side or end mounting
Current rating ranges from 5 A to 25 A
Available with one or two SPDT switches
Choice of termination

Honeywell Microswitch, 15A Current Rating, 46mm Height - AC Series - 13AC1

Looking for a way to protect personnel against machine hazards? This microswitch from Honeywell cuts off power when a connected door is open, keeping you safe from moving parts. The switch automatically resets when you close the door, making it simple to use. Thanks to its SPDT configuration, it can control up to two circuits at once for enhanced versatility.

Features & Benefits

• Screw terminals for simple and secure installation
• Wide operating temperature range between -18°C and +149°C for use in harsh conditions
• Stainless steel housing is resistant to corrosion and impact

Applications

• Commercial appliances
• Office equipment
• Communication systems

How do I mount this device?

This switch is designed for side or end mounting for flexible installation.

How large is this switch?

This switch has compact dimensions of 56.4 (length) x 13.21 (width) x 46mm (height), making it suitable for installation in tight spaces.
