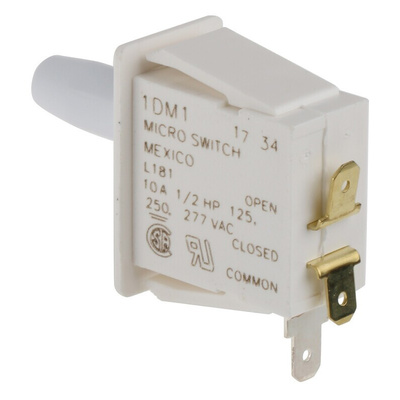

1DM1, Honeywell Bullet Nose Plunger Micro Switch, Quick Connect Terminal, 10 A @ 277 V ac, SP-CO, Микропереключатель

Honeywell DM/DP Series Snap-in Panel Mount Switch

The DM/DP series has been designed for applications requiring a snap-action switch in either a basic or manual configuration. Instillation has been simplified with the use of quick connect terminals and a snap-in panel mount housing. Various options are available including momentary or alternate actions and single or double-pole. The DM accepts a button for manual operation. The DP has plungers for basic operation.

Potential Applications:
Appliance door lights
Door interlocks
Stop/start switches

Features
Attractive, rugged snap-in panel mount design - easy installation
Choice of momentary, alternate push-pull or pull-to-cheat operation
Quick-connect terminals
Expected mechanical life: 1 million operations, 95% survival

Standards

UL and CSA

Honeywell Bullet Nose Plunger Microswitch, 10A, 277V AC - DM Series - 1DM1

Use this plunger microswitch from Honeywell for precision control in a variety of applications. It has a robust polyester case that's impact-resistant, so you can rest assured it won't break or wear under pressure. Thanks to its snap-in panel mounting design, this microswitch is quick and easy to install. It also has an operating force of 4.17N and a low release force of 0.83N for a quick response to pressure on its actuator. Its single pole changeover (SPCO) configuration means it's stable in the off position when its actuator is in the centre for more precise control.

Features & Benefits

• Contact voltage rating of 277V AC (alternating current) for use in low-voltage applications
• Broad operating temperature range of -37°C to +82°C for use in harsh environments
• Robust mechanical life of 1,000,000 operations for long-term performance
• Silver contact material for superior conductivity and corrosion resistance to ensure a reliable connection

Applications

• Appliance door lights
• Door interlocks
• Indicator circuits

How does this microswitch work?

When the plunger on this microswitch is depressed, it stays in that state while circuit transmission is maintained. Its contacts return to their original state when the plunger is pulled back to its extended position.

Snap-in Panel Mount Switch 1DM1 Data Sheet

Datasheet

Application Note - Switches and Sensors
