1TB1-2, Honeywell Pin Plunger Micro Switch, Solder Terminal, 10 A @ 250 V ac, DP-CO, Микропереключатель

Honeywell TB Series Basic Double Break Switches

The TB series miniature switches have been designed as a basic, double-break unit capable of offering a means of controlling isolated circuits. Each circuit may be driven by an independent voltage source.

Potential Applications:
Modern control systems
Welders
Industrial equipment

Features:
Two and four circuit double break
Power load switching capability to 10 A
Motor handling capacity of 373 W (0.5 hp) at 125 Vac
Momentary action
Choice of actuation and termination

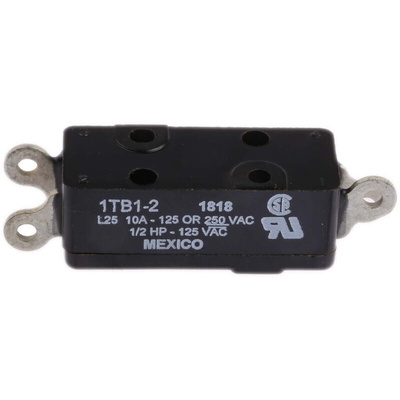

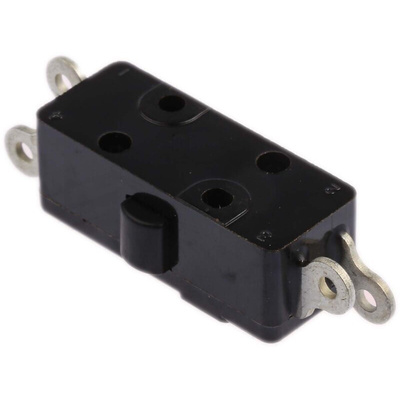

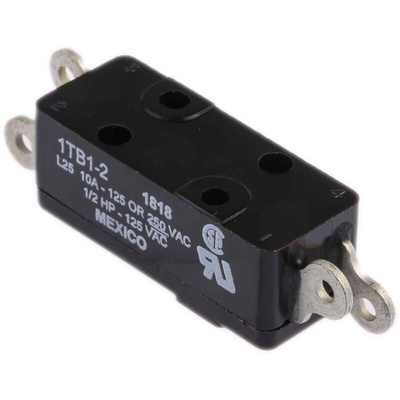

Honeywell Pin Plunger Microswitch, 10A, 250V AC - TB Series - 1TB1-2

This microswitch from Honeywell helps enhance safety and reliability in your control systems and isolated circuits. It features a built-in pin plunger for automated switch return, giving you streamlined on and off switching. This microswitch's silver contacts provide effective electrical conductivity and corrosion resistance for a reliable connection. Its solder terminals make it simple to install and ensure a secure connection. The switch's phenolic housing reduces heat transfer and prevents contact with any live parts for user safety.

Features & Benefits

• Wide operating temperature range of -55°C to +125°C for use in demanding environments
• Long mechanical life of 7,000,000 operations for long-lasting reliability
• Operating force of 1.95 to 3.61N with a release force of 1.11N for quick on and off switching

Applications

• Modern control systems
• Industrial equipment
• Welding tasks

What are pin plungers?

Pin plungers are mechanical components used for positioning working pieces of a switch device. A spring is built into the main body of the device, allowing the pin to sink when a load is applied and return to its static position when the load is removed via spring force.

TB Series Basic Switch 1TB1-2 Data Sheet
