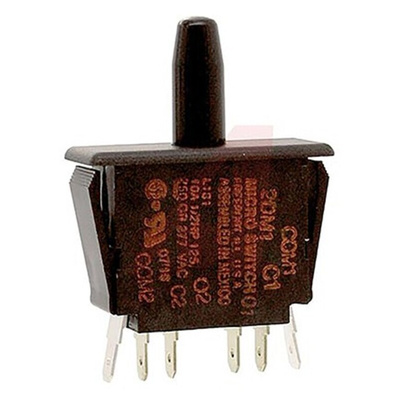

2DM1, Honeywell Bullet Nose Plunger Micro Switch, Quick Connect Terminal, 10 A @ 277 V ac, DP-CO, Микропереключатель

Honeywell DM/DP Series Snap-in Panel Mount Switch

The DM/DP series has been designed for applications requiring a snap-action switch in either a basic or manual configuration. Instillation has been simplified with the use of quick connect terminals and a snap-in panel mount housing. Various options are available including momentary or alternate actions and single or double-pole. The DM accepts a button for manual operation. The DP has plungers for basic operation.

Potential Applications:
Appliance door lights
Door interlocks
Stop/start switches

Features
Attractive, rugged snap-in panel mount design - easy installation
Choice of momentary, alternate push-pull or pull-to-cheat operation
Quick-connect terminals
Expected mechanical life: 1 million operations, 95% survival

Standards

UL and CSA

Honeywell Microswitch, Bullet-Nose Plunger Actuator, 10A Current Rating - DM Series - 2DM1

Use this bullet-nose plunger microswitch from Honeywell to turn electrical circuits on or off. Thanks to its quick-connect terminals, it's simple to wire without the need for complex tools. The snap-in panel mount design lets you install it by simply clipping it in place, saving you time and effort. As the housing is made from polyester, it has high tensile strength for resistance to impact and wear.

Features & Benefits

• Release force of 1.67N for quick reset
• Silver contacts are highly conductive and resistant to corrosion for a reliable connection
• Wide operating temperature range between -37°C and +82°C for use in harsh environments

Applications

• Agricultural equipment
• Vending machines
• Consumer electronics
• Automotive engineering
• Building control systems

How long will this switch last?

This unit has a long mechanical service life of one million operations, so you can rely on it for long-term performance.
