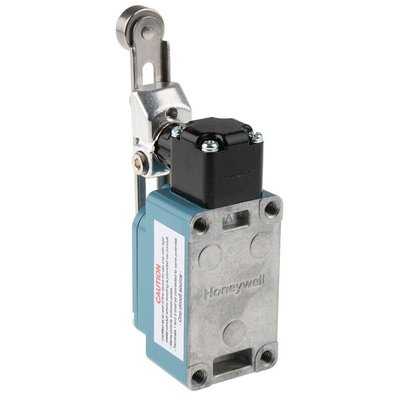

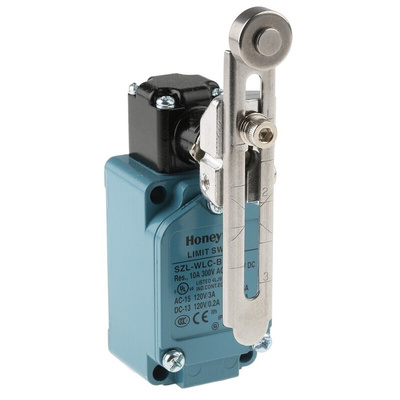

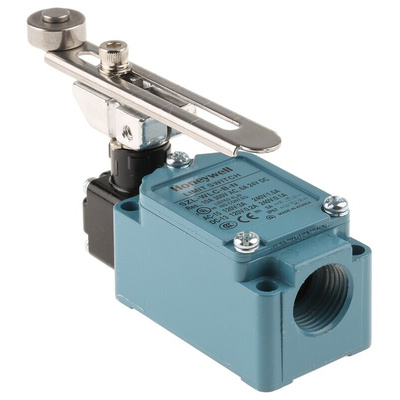

SZL-WLC-B-N, Honeywell SZL-WL Series Adjustable Roller Lever Limit Switch, NO/NC, IP67, SPDT, Die Cast Aluminium Housing, 6A Max, Концевой выключатель

SZL-WL Series

SZL-WL series general purpose limit switches suitable for detecting objects in various applications such as conveyors & machine tools

Single pole double throw,double break
Set position indicator
High mechanical strength
Aluminium die-cast housing
Waterproof & dustproof construction

Approvals

UL, CSA, CE

Honeywell Double-Break Limit Switch, Adjustable Roller Lever, 24V DC - SZL-WL Series - SZL-WLC-B-N

This limit switch from Honeywell efficiently detects the presence of an object in a machine's path and acts as a safety measure between them. You can use this switch in a range of general-purpose industrial and manufacturing applications because of its high mechanical strength. The unit is fitted with a die-cast aluminium housing for corrosion resistance, making it suitable for harsh or outdoor conditions. It's designed to continue functioning optimally under temperatures as high as +80°C or as low as -10°C. This gives you versatility in where you install it, as well as a long mechanical service life of up to 15,000,000 cycles.

Features & Benefits

• Compact size of 94.1 (L) x 40 (W) x 67mm (D) enables use in restricted spaces
• IP67 (ingress protection) rating indicates complete protection from dust as well as low-pressure water jets from any angle
• PF1/2 threaded female connector type ensures secure sealing and easy pipe connection

Applications

• Position sensing on automated metal removing machines
• Lift car position and levelling control
• Factory conveyor belts

Can I use this switch with higher voltages?

It's recommended that you use this device below its maximum voltage of 24V DC to ensure safety.
