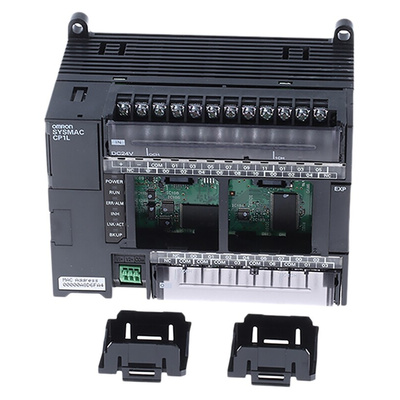

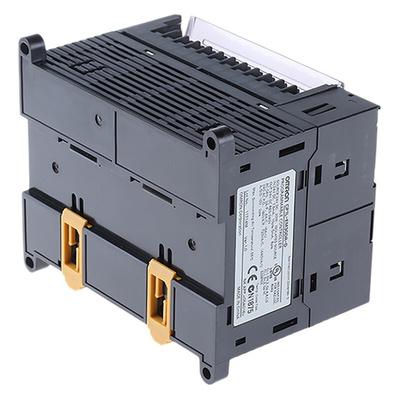

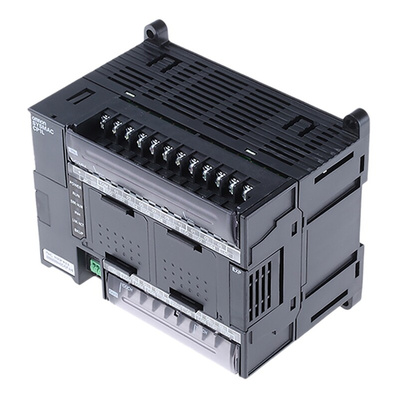

CP1L-EM30DR-D, Omron CP1L-EM Series PLC CPU for Use with CP Series, Relay Output, 18-Input, DC Input, ПЛК

Omron Programmable Logic Controller

The Omron CP1L-EM is a programmable logic controller(PLC) with 12 outputs, Ethernet networking computer interface device. It has 10000 steps program capacity and 30 built-in I/O points. This PLC is for use with CP Series. The series offers the compactness of a micro-PLC with the capability of a modular PLC. This range is not only compact, but also scalable, and has a faster processing speed than other controllers. It has many advantages as compared to its earlier generation of PLCs like six in-built interrupts, high-speed counters, faster processing of instructions that speed up the entire system and structural text language support that makes mathematical operations much easier. It also has high precision positioning control suitable for advanced robotics.
Note
:
Omron CPM1, CPM1A, CPM2A, CPM2C expansion modules may be used with the CP1L CPU range.

Features and Benefits

Required DC power supply
Compatible with all the other devices in the Omron PLC line-up
4 high-speed encoder inputs and 2 high-speed pulse outputs
Expandable up to 3 modules
Instruction set compatible with CP1H, CJ1 and CS1 series PLCs
Optional RS232C and RS-422A/485 serial ports
18 digital inputs and 12 digital outputs
Motion functionality
Operating temperature ranges between 0°C and 55°C

Applications

Industrial automation
Robotics
Automobile Industry

Certifications

CE

RS OUR OFFER - OMRON PLC CP1L

Datasheet
