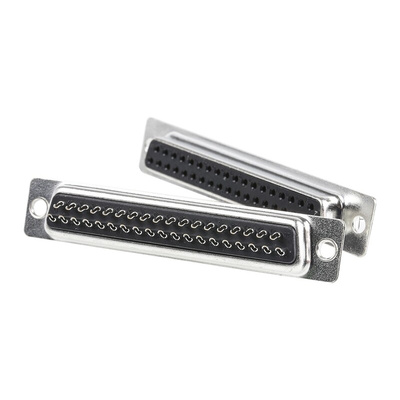

MHDB37SS, MH Connectors MHDB 37 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch, Разъем

D-Sub Solder Cup Female Socket Connectors MHDB and MHDM Series

A range of MHDB and MHDM Series D-Sub Solder Cup Socket Connectors with Nickel plated front shells and Tin plated back shells with Ø3 mm holes.
Insulator material used for these MHDB and MHDM Series D-Sub Solder Cup Socket Connectors is a UL94 V-0 Black Glass filled PBT.
The Brass Tin-Gold plated terminals of these D-Sub Solder Cup Socket Connectors are manufactured as follows:
MHDB Series:
787-3852\tstamped and formed Solder Cup receptacle 9 way
787-3864\tstamped and formed Solder Cup receptacle 15 way
787-3877\tstamped and formed Solder Cup receptacle 25 way
821-2841\tstamped and formed Solder Cup receptacle 37 way
MHDM Series:
787-3874\tmachined Solder Cup receptacle 9 way
787-3886\tmachined Solder Cup receptacle 15 way
787-3899\tmachined Solder Cup receptacle 25 way
821-2848\tmachined Solder Cup receptacle 37 way

Note

Gold thickness is 0.6-0.8 microinch.
