RS PRO 2 Core Power Cable, 1 mm², 50m, Black CPE Sheath, 450/750 V ac

RS PRO H07RN-F Harmonised Rubber Insulated Mains Cable

From RS PRO a high-quality heavy duty and hard wearing H07RN-F flexible harmonised mains power cable with rubber insulation and chloroprene or polychloroprene rubber jacket. This cable has a voltage rating of 450 to 750 V and is designed for use in demanding industrial environments

What is Mains Cable?

A mains power cable connects an appliance to a mains electricity supply through the use of a wall socket or an extension lead which will then be plugged into a mains supply

Cable Construction

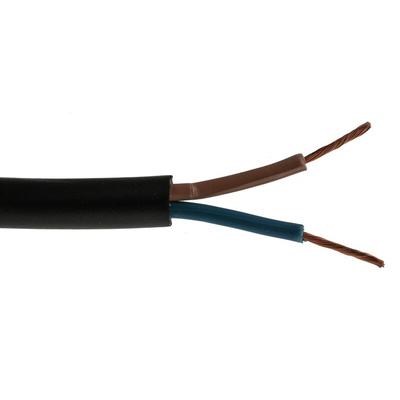

This flexible mains cable consists of cores made up of bare stranded copper conductors or wires. Each individual core is surrounded by colour coded rubber insulation for easy identification of the wires. All the cores are then surrounded by a final layer of chloroprene rubber called a sheath or jacket.

What Does H07RN-F Mean?

H07RN-F cable is a type of harmonised cable which means it belongs to the Harmonised Reference System and conforms to the European Harmonisation Standard. This purpose of this standard is to improve standards and quality of cables across Europe to ensure the trade of common standard product.

H07RN-F is the code for this harmonised cable which breaks down into the following:

• H = Harmonised
• 07 = 450 / 750 voltage rating
• R = Natural or synthetic rubber insulation
• N = Chloroprene or polychloroprene rubber sheath
• F = Flexible copper conductors

Benefits of Rubber Insulated Mains Cable

This flexible mains cable is made from materials with unique qualities that make it suitable for use in demanding environments.

The cable jacket has the following benefits
• Durable and long lasting
• High resistance to abrasion
• Good weathering stability
• Good tensile strength
• Flame resistant and and self extinguishing
• Resistance to oils and other chemicals

Where are These Cables Used?

Chloroprene or polychloroprene rubber insulated mains cables, with their unique properties are ideal for use in a wide range of industrial wiring applications. These cables are especially suited to applications that require cabling to be durable, flexible and be able to withstand a medium degree of mechanical stress. Industries include the manufacturing industry, distribution and power networks, telecommunications, building, automation, and many others. Applications include;

• Electrical tools eg drills and circular saws
• Transportable motors
• Generators
• Heating plates
• Boilers
• Lighting
• Household appliances
• Industrial equipment
• Power and control applications
• Distribution and power networks

Standards

VDE0282

RS PRO 2 Core 1 mm² Mains Power Cable, Black CPE Sheath 50 m, 450/750 V ac, H07RN

Able to withstand weather, thermal and mechanical stresses, this mains power cable is designed to help you power equipment in all kinds of challenging locations.

As it's sheathed in a flexible, water-resistant rubber compound, it makes an ideal choice for wet areas including ports, dams and water treatment facilities. The cable's ability to withstand oil and grease also means it's an effective option for use in industrial environments. Other common applications include mobile power supplies and worksites as well as stage and audio-visual equipment.

The cable is compliant with a range of European standards. These include VDE0282, meaning it's certified as a safe and effective low-voltage energy cable, as well as RoHS, so it contains minimal levels of harmful substances. Its two stranded cores have a cross-sectional area of 1 mm² with an outer diameter of 8.3 mm. It's available in a length of 50 metres.

Features and Benefits

• Multicore power cable
• 2 x 1.0 mm cores, resistance of 19.5 Ω/km
• Stranded cable with CPE rubber compound sheath for flexibility

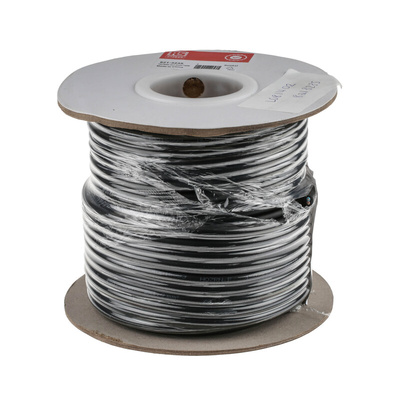

• 50-metre reel
• Outer diameter of 8.3 mm
• Maximum operating temperature of +60˚C
• Voltage rating of 450 V, 750 V
• Harmonised Code H07RNF, EU standard for low-voltage, EPR-insulated, PCP-sheathed copper conductors

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
