060-2443-07, Honeywell Subminiature Load Cell, 11.3kg Range, Compression Measure

Honeywell Model 13 Subminature Load Cells

The Honeywell Model 13 Sub-miniature Load Cell is designed to measure load ranges with complete accuracy from 150 g to 1000, these units are easily incorporated into systems which have limited space. Model 13 combines high frequency and low deflection to achieve a combined non-linearity and hysteresis of 0.25%  0.5% full scale. A small circuit board is included in the load Cell’s lead wire cable for temperature compensation, which is recommended not to remove.

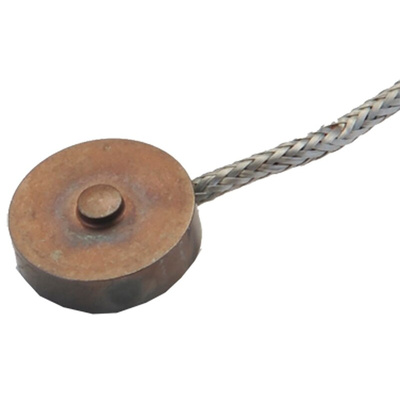

Honeywell Subminiature Load Cell, 11.34kg Load Range, 9.65mm Diameter - Model 13 Series - 060-2443-07

This load cell from Honeywell lets you monitor and manage weights in your application. It bears compressive loads of up to 11.34kg for use in light-duty applications. Thanks to a balance board that's built into its wire lead, the load cell provides temperature compensation to ensure accurate measurements. The cable has an ample length of 1.83m to ensure a flexible connection. This load cell has a high accuracy of +0.7%, giving you precise results.

Features & Benefits

• Compact dimensions of 3.3 (height) x 9.65mm (diameter) for use in areas where space is limited
• Durable stainless steel housing material for resistance to corrosion and impact
• Wide operating temperature range of -54°C to +121°C for use in demanding environments
• Stainless steel braided shield cable is resistant to impact and wear for use in harsh conditions

Applications

• Weighing components
• Packing and bottling plants
• Food production industry

How much does this load cell weigh?

This load cell weighs only 9g including the cable, so it's easy to handle and will place minimal strain on your equipment.
