060-1432-08, Honeywell Miniature Load Cell, 227kg Range, Compression, Tension Measure

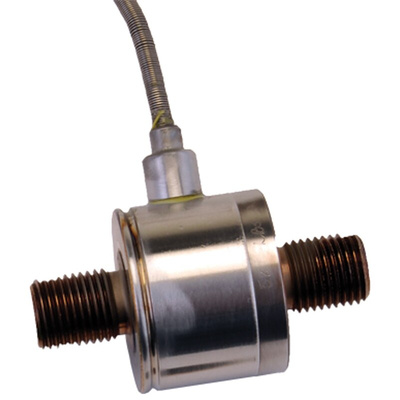

Honeywell Model 31 Low Range Precision Miniature Load Cells

Model 31 low range precision miniature load cells measures both tension and compression load forces of 50 grams to 500 g. These models are our highest accuracy, rugged miniature load cells. Model 31’s welded, stainless steel construction is designed to eliminate or reduce to a minimum, the effects of off-axis loads.
High accuracies of 0.15% 0.25% full scale are achieved. Each bonded strain gage unit is built of welded 17-4 PH stainless steel for additional ruggedness.

A modification permit allows this model to be completely welded for underwater applications.
Model 31’s tension / compression load cells has male thread attachments.

50g to 500 g
mV/V output
Stainless steel
Miniature design
Double diaphragm construction

Datasheet
