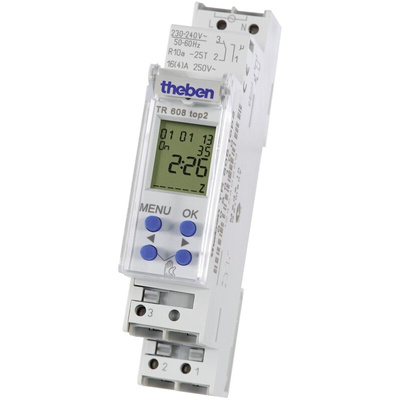

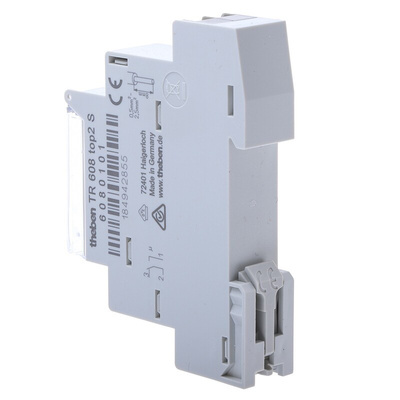

TR608 top2 S, Theben Digital DIN Rail Time Switch 230 V ac, 1-Channel

Theben Time Switch

The Theben digital time switch is a single channel, DIN rail, single pole double throw(SPDT) device. It is an astronomical time switch with a weekly program and 56 memory locations. It has a supply voltage of 230VAC/240VAC. The housing material of this switch is highly temperature resistant made with self-extinguishing thermoplastic. This device enables safe transfer via optional Bluetooth low energy OBELISK top3. It is useful for industrial applications.

Features and Benefits

DuoFix spring terminals with wire diameter 0.5mm² and 2.5mm² (with or without wire end sleeve)
Wire or strand button for releasing the plug-in connection
Text-oriented user guidance in display
Pre-set date and time
Button for releasing the plug-in connection
Fully operable without mains connection
Zero-cross switching for relay-saving switching and high lamp loads
Automatic summer/ winter time changeover
Switching preselection
Permanent switching on/ off
PIN coding
Shortest switching time is 24 hours
The ambient temperature ranges between -25°C and 55°C

Certifications

IP20 rated
EN 60 730-1
VDE

TR608 - Digital Time Switch
