TKBA 10, SKF Belt Alignment Tool - Laser Class 2, ±0.5 mm/m Accuracy, 169 x 51 x 37mm, Лазерный центровщик

SKF - TKBA Laser Belt Alignment Tools

Drive belt and pulley misalignment can significantly contribute to noise, vibration, bearing and pulley wear leading to premature bearing failure and costly machine downtime. SKFs Laser Belt Alignment Tools provide faster and more accurate alignment over traditional methods. Increasing bearing life, reducing noise, vibration and minimising wear on pulleys and belts. You can now align all belt drives with just one tool.

Features and Benefits

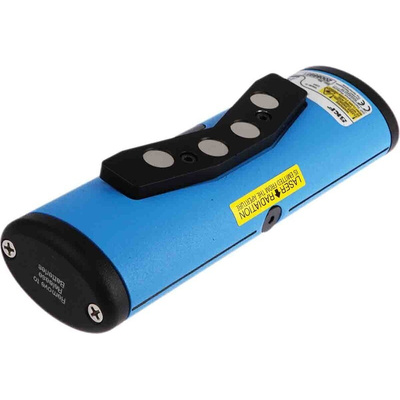

•Powerful magnets allow fast and easy attachment
•Facilitates simultaneous adjustment of tension and alignment

TKBA 10 & TKBA 20

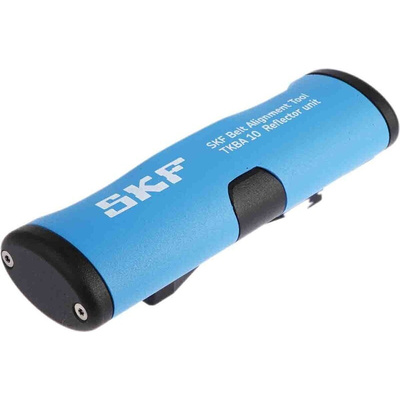

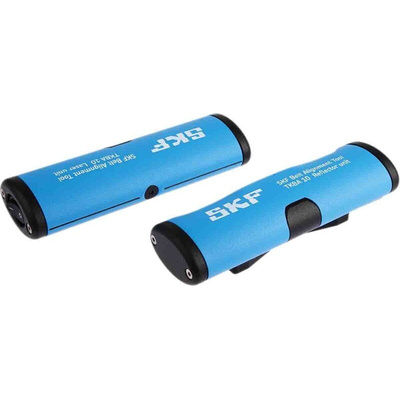

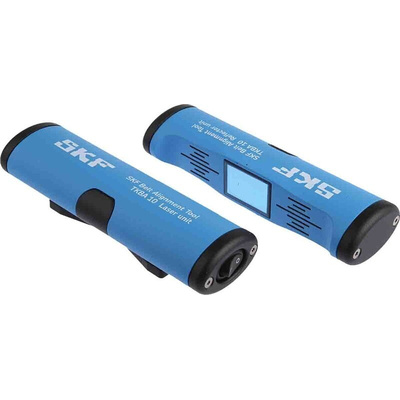

The TKBA 10 and TBKA 20 series of Belt Alignment Tools offer fast accurate laser alignment of pulleys and sprockets. Using powerful magnets to hold firmly to the pulleys side face, the transmitter projects a line to the receiver (mounted on the opposite pulley). Various indicator lines on the receiver give an immediate visual indication of any offset or misalignment with the belt. The line reflected back to the transmitter showing any horizontal misalignment between the two pulleys.

•Can be used on almost all machines using V belts, ribbed belts as well as chain sprockets
•TKBA 10 utilises a red laser and used for distances up to 3 metres
•TKBA 20 utilises a highly visible green laser and used for distances up to 6 metres and can be used in sunny conditions
•Sturdy aluminium housings ensuring stability and accuracy during the alignment process

TKBA 40

The TBKA 40 Laser Belt Alignment Tool aligns the pulleys V grooves not the side face, providing the most accurate horizontal, vertical and parallel belt alignment. Groove alignment also allows pulleys with differing faces or widths to be aligned with greater confidence. Attached to the pulley using magnets with V guides to aid accurate placement.

•Three-dimensional target area simplifies the alignment process
•V-guides facilitate the alignment of a wide range of V-belt pulleys
•Aligns grooves of a V-belt pulley rather than its face
•Maximum operating distance of 6 metres

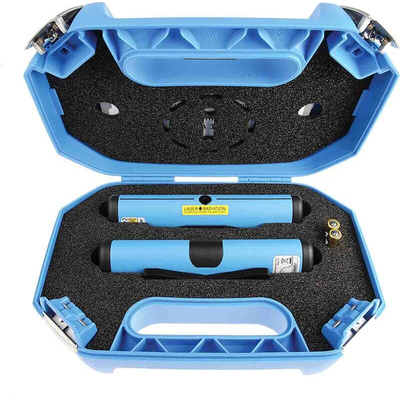

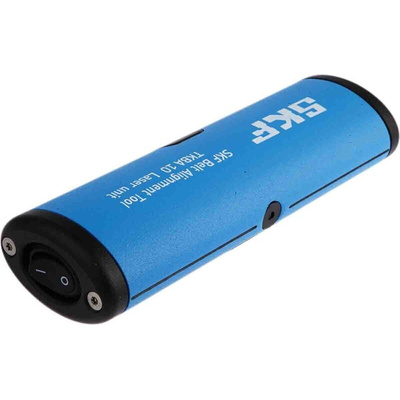

SKF Belt Alignment Tool - TKBA 10

Is unplanned machine downtime due to belt misalignment increasing your overheads? Turn to SKF's laser belt alignment tool for pulley and socket alignment. The innovative laser tool magnetically attaches to any belt or chain and projects reference lines to indicate horizontal and vertical offsets. This makes the process faster and more accurate. It also ensures long service life for bearings by reducing friction, noise, vibrations and general wear and tear. Moreover, higher accuracy also improves productivity and energy efficiency.

•\tBattery-operated laser belt alignment tool
•\tClass 2 laser wave
•\tLaser wave length of 635 Nm
•\tAccuracy of ±0.5 mm/m
•\tWeight of 1.4 kg

Application Information

•\tV Belt systems
•\tRibbed belt and banded belt systems
•\tChain sprocket machinery

How far does the laser beam on this belt alignment tool travel?

The red laser beam on this tool travels a distance of up to 3 m (10 ft).

What type of housing does this tool use?

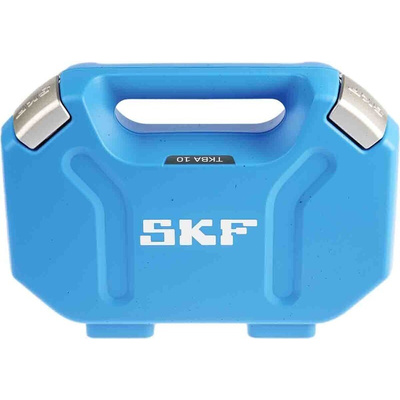

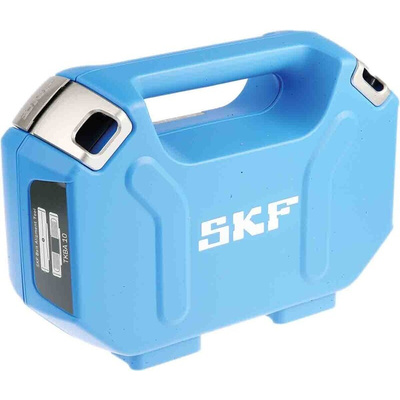

This laser belt alignment tool uses a sturdy aluminium housing along with powerful magnets to ensure stability and accuracy during the alignment process.
