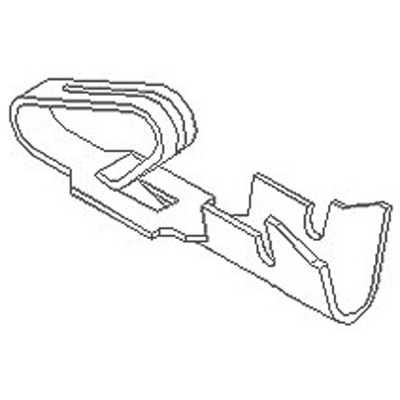

08-50-0116, Molex KK 396 Series Female Crimp Terminal, 20AWG Min, 18AWG Max, Контакты

Molex KK Series Crimp Terminals

The KK series offers a wide range of crimp terminals and housings to suite many applications. They are suitable to be used in applications where there is a wide temperature range requirement.

Standards

UL E29179, CSA LR19980

Molex Crimp Terminal, 20 to 18AWG Wire Sizes, Tin Contact Plating - KK 396 Series - 08-50-0116

Get wired with this crimp terminal from Molex. The unit securely terminates wires sized from 20 to 18AWG to your KK396 connector housings. Thanks to the highly conductive tin-plated brass contacts, you can count on reliable signal relays. This lightweight unit tips the scales at just 0.16g, so puts minimal strain on installations. Partner it with a Molex crimping tool (220-914)to get your power connections done in a trice.

• Brass construction resists corrosion for durability
• Solderless crimping saves time and effort
• Partitioned component is easy to handle when inserting wires

Applications

• Consumer electronics
• Aerospace applications
• Automotive industry
• Medical equipment

What's the proper way to seal crimp terminals?

Always use a crimping tool that matches the chosen wire size for a secure crimp. It's important to get a tight seal to prevent accidental disconnections and service interruptions.
