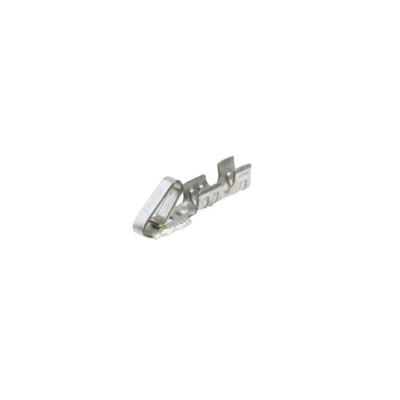

08-52-0123, Molex KK 254 Series Female Crimp Terminal, 30AWG Min, 22AWG Max, Контакты

KK Crimp Terminals, 6459 Series

This Molex KK 254 6459 Series crimp terminal, for 22-30 AWG wire, has a cantilever design for high contact pressure and wiping action.
Use with KK 254 2695 Series socket housings stock number 670-1623 typical.
Use with KK 254 47054 Series crimp housing stock number 720-5990 typical.
For KK 254 Insertion Tool see stock number 710-6528 .
For KK 254 Extraction Tool see stock number 173-3278 .

Molex Crimp Terminal, 30 to 22AWG Wire Sizes, Tin Contact Plating - 6459 Series - 08-52-0123

Looking to clamp down on loose wires? Securely terminate your conductors with this crimp terminal from Molex. It's a solderless method that saves both time and effort, letting you get the job done in a jiffy. With its highly conductive tin-plated phosphor bronze contact material, the unit transmits reliable power signals and delivers consistent performance. It's a lightweight option at just 0.07g, so it won't strain your cable.

• Wide wire size range between 30 and 22AWG means it's widely compatible
• Cantilever design for high contact pressure and secure signal transmission
• Phosphor bronze metal body resists corrosion for long-term durability

Applications

• Medical equipment
• Computers and laptops
• Smartphones
• Server rooms

What crimping tool should I use with this crimp terminal?

Get the Molex crimping tool (798-0821), as it guarantees the right level of compression needed for a secure fix.

Datasheet

Line Drawing - 08-52-0123
