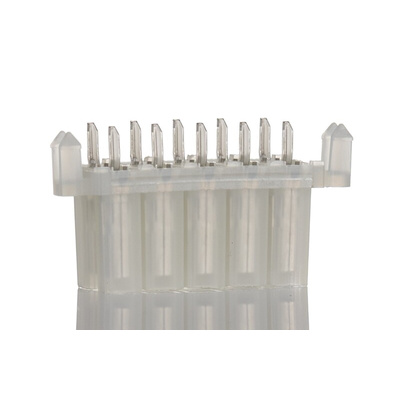

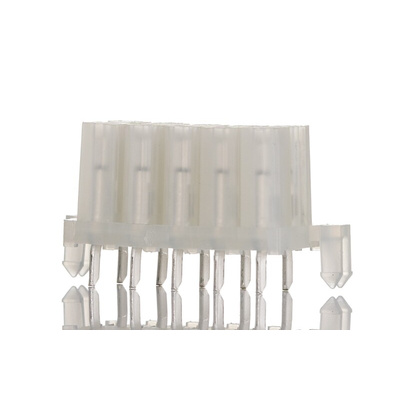

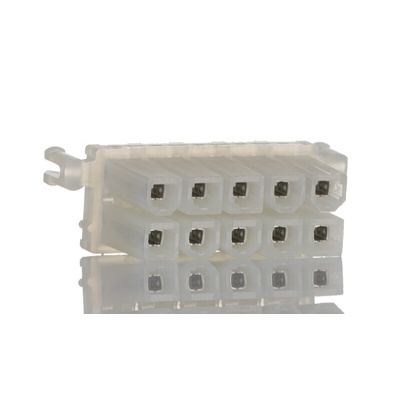

15-24-7100, Molex Mini-Fit BMI Series Straight Through Hole Mount PCB Socket, 10-Contact, 2-Row, 4.2mm Pitch, Solder Termination

Mini-Fit BMI Headers - 42385 Series

This Mini-Fit Series 42385 BMI vertical headers are designed for board-to-board or power applications.The Blind Mate Interface (BMI) feature allows easier alignment in panel-to-board and board-to-board applications. They are dual row with tin (Sn) plated contacts and snap-in plastic peg PCB lock.

Molex PCB Socket, Board-to-Board Type, 9A Current Rating - 42385 Series - 15-24-7100

Bridge the gap between two circuit boards using this PCB socket from Molex. You set it up by inserting the male end of your PCB connector into its circuits and attaching it to a second PCB. The contacts are made of tough brass that has high electrical conductivity to ensure stable current transmission. Thanks to a built-in PCB locator, it's easy to find the correct position on the board to attach this socket.

• Wide operating temperature range between -40°C and +105°C to withstand harsh industrial environments
• PCB retention to lock down attached boards
• Durability rating of 30 mating cycles to withstand demanding operations

Applications

• Audio-visual devices
• Consumer electronics
• Automotive engineering

What's the socket's housing made of?

The housing is made of durable nylon, which provides insulation and protection against the impacts you'd expect in heavy-duty settings.

Molex Mini-Fit BMI Series

Datasheet

Line Drawing
