16-02-1125, Molex SL Series Female Crimp Terminal, 24AWG Min, 22AWG Max, Контакты

Molex SL Crimp Contacts, 70058, 71851 and 70021 Series

These ranges of SL series crimp terminal contacts offers to choose from male or female contact, wire size between 30 to 22 AWG, gold or tin contact plating.

For 70066 series SL crimp housings see stock number 670-3843 typically
For 70066D and 70107 series SL crimp housings see stock numbers 670-3890 and 670-4098 typically

Applications:

• Automotive
• Commercial Vehicles
• Consumer Electronics
• Portable Devices
• Medical Industry
• Communications
• Networking

Note

For Reference only: 70058 and 71851 Series also used with 70450 Series Housings

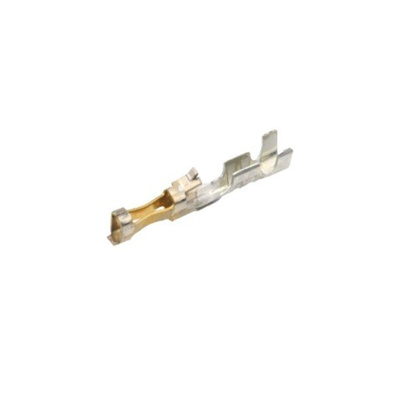

Molex Crimp Terminal, Signal Type, 24 to 22AWG Wire Sizes - 71851 Series - 16-02-1125

Attaching a conductor to your board is a cinch with this crimp terminal from Molex. As it handles wires ranging in size from 24 to 22AWG, it's a widely compatible option. Phosphor bronze contacts are on hand to provide high electrical conductivity, so you get steady signal feeds to your PCB.

• Robust gold contact plating resists corrosion
• Tin contact plating for thermal resistance and durability

Applications

• Medical devices
• Household appliances
• Lighting fixtures

How do I crimp my conductor to this terminal?

To crimp your wire to this terminal, strip the outer jacket off the end and place the conductors into the unit. Use a hand crimping tool (63811-8700) to achieve a quick and secure fix.

What type of housing can I use with this terminal?

To protect this terminal and shield it from contaminants, use a connector housing from the Molex SL range, such as the double-contact option (170-7227).

2.54mm Molex C-Grid/SL Series

Datasheet

Line Drawing - 16-02-1125
