19-09-1039, Molex, STANDARD .093" Female Connector Housing, 6.7mm Pitch, 3 Way, 1 Row, Корпус разъема

Molex 3191 Series Housings

The 3191 Series of 6.70 mm pitch receptacle housings from Molex, accept industry standard 2.36mm diameter .093” male pin and female socket connectors. Suitable for use in medium power applications such as refrigerators and microwaves, as well as data communications such as desktop computers, motherboards and hard disc drives.

Features and Benefits

• 6.70 pitch
• Wire to board and wire to wire configurations and fittings
• Dual and single row housing
• Natural colour
• Positive locking
• Fully isolated terminals
• Polarised to ensure secure mating

For mating connectors see series 3191 2.36mm diameter standard .093" pin and pocket plug housings - stock number 236-3117 typically and series 5219 2.36mm diameter standard .093" pin and pocket headers - stock number 670-0282 typically.
For .093" crimp terminals see stock number 670-1847 and 670-2248 typically
For crimp tool see stock number 501-045

Note

For crimps see 670-1847 and 670-2248 and range, Crimp tool see 501-045

Approvals

UL (E29179); CSA (LR 19980); EAMCL

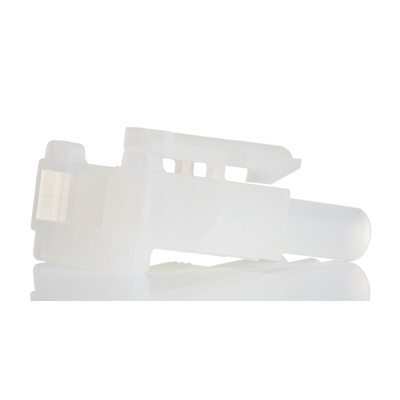

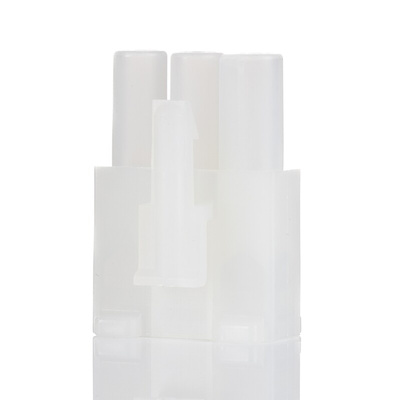

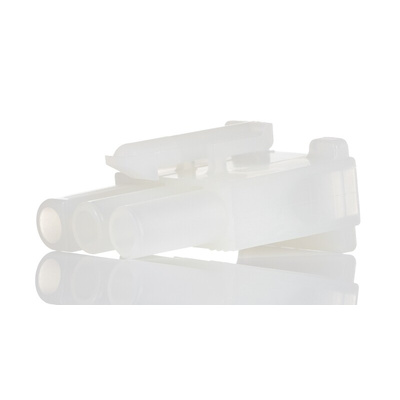

Molex Connector Housing, Straight Orientation, 29.9 (W) x 21.01mm (L) - 3191 Series - 19-09-1039

Keep your circuits safe and sound with this connector housing from Molex. It shuts out airborne dust and moisture, keeping the female connector clear of corrosion. Don't worry about knocks and bumps, as the durable nylon body stands strong against impacts. The unit's three-way design takes the hassle out of guarding multiple circuits simultaneously. Thanks to its built-in locking latch, the housing hangs on firmly to its mating connector, which stops sudden movements from pulling the plug.

• Supports loads up to 11A per contact, for easy compatibility
• Wide operating temperature range between -40°C and +105°C, so tolerates harsh conditions

Applications

• Industrial automation
• Logistics industry
• Office networks

Is this housing polarised to the mating part?

Yes – this ensures you get the right orientation during connection and prevents damage.
