19-09-1099, Molex, STANDARD .093" Male Connector Housing, 6.7mm Pitch, 9 Way, 3 Row, Корпус разъема

Molex 3191 Series Housings

The 3191 Series of 6.70 mm pitch receptacle housings from Molex, accept industry standard 2.36mm diameter .093” male pin and female socket connectors. Suitable for use in medium power applications such as refrigerators and microwaves, as well as data communications such as desktop computers, motherboards and hard disc drives.

Features and Benefits

• 6.70 pitch
• Wire to board and wire to wire configurations and fittings
• Dual and single row housing
• Natural colour
• Positive locking
• Fully isolated terminals
• Polarised to ensure secure mating

For mating connectors see series 3191 2.36mm diameter standard .093" pin and pocket plug housings - stock number 236-3117 typically and series 5219 2.36mm diameter standard .093" pin and pocket headers - stock number 670-0282 typically.
For .093" crimp terminals see stock number 670-1847 and 670-2248 typically
For crimp tool see stock number 501-045

Note

For crimps see 670-1847 and 670-2248 and range, Crimp tool see 501-045

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex Male Crimp Connector Housing, 9 Way, 3 Rows - Standard .093" Series - 19-09-1099

Link up PCBs (printed circuits boards) with this male connector housing from Molex. It protects sensitive electrical wires from damage and helps ensure your power and signal connections stay securely attached. The housing is made from robust nylon with high resistance to abrasion, so it meets the demands of harsh industrial environments. Nylon's resistance to corrosion also adds to the housing's longevity. To simplify assembly, this unit is polarised so won't mate with a mismatched terminal.

• Space-saving dimensions of 21 (L) x 29.9 (W) x 26.2mm (D) for maximum packing efficiency
• Wide operating temperature range of -40°C to +105°C for use in demanding settings
• Low-halogen properties to reduce the risk of producing toxic fumes in the event of a fire
• Made from non-conductive plastic to improve safety during installation

Applications

• Office equipment
• Computer networks
• Data communication centres

How many contacts does this connector housing have?

This connector housing has nine contacts, so you're able to make multiple connections on one unit.

Is this housing fire-safe?

Yes – for greater safety, this housing is self-extinguishing. This means is won't catch alight and contribute to a fire.

Molex 2.36mm Diameter Standard .093" Pin and Socket Range

Datasheet

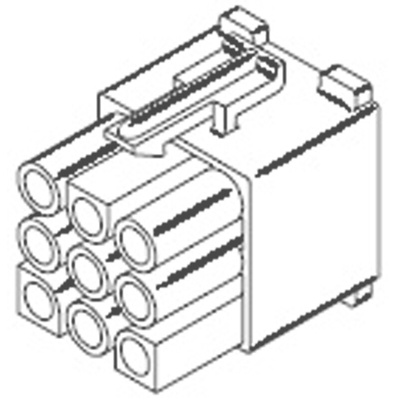

Line Drawing
