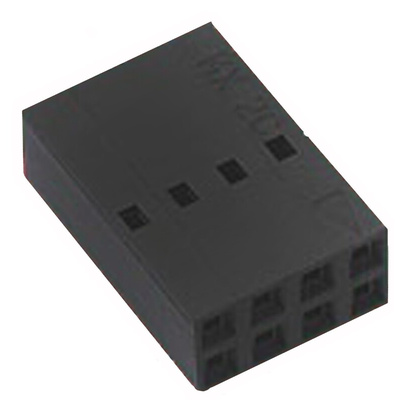

22-55-2061, Molex, SL Female Connector Housing, 2.54mm Pitch, 6 Way, 2 Row, Корпус разъема

SL 2.54mm Crimp Housing – 70450 Series

The SL 70450 series crimp housings are designed to be used in signal or wire-to-board applications. SL is designed for high density applications and offers design flexibility and automated harness-making capabilities when combined with the SL series tooling. They consist of dual row housings and are designed to be stackable. The plastic insulator housing is made from black glass filled polyester material with UL 94V-0 approval.

Voltage rating: 250 volts (RMS)
Operating temperature: -40 to 105 C°

Standards

UL- E29179, CSA- LR19980

Note

This product should be ordered for 3 pieces.

2.54mm Molex C-Grid/SL Series
