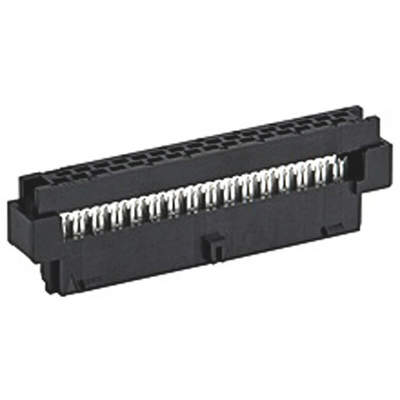

87568-1493, Molex Milli-Grid Series Straight Surface Mount PCB Socket, 14-Contact, 2-Row, 2mm Pitch, IDT Termination

Molex 2.00 mm Milli-Grid IDC Receptacle - 87568 Series

87568 series dual row Milli-Grid high density IDC receptacle with a 2.00 x 2.00 mm grid pattern for design flexibility. These Milli-Grid IDC receptacles feature a pre-loaded upper housing for precise cover to base alignment. Early entry single beam contacts with a long wiping action provide a reliable contact. Versions of these receptacles are available with a centre polarization key to prevent mismating, a centre locking ramp for a secure mating connection and side latches. A strain relief is available separately which provides extra cable retention.
Part numbers 87568-xx63 have a plain design
Part numbers 87568-xx73 have a centre locking ramp
Part numbers 87568-xx93 have a centre polarization key and side latch

Features and Benefits

• High density 2.00 x 2.00 mm grid design
• Pre-loaded upper housing
• Single beam contacts with a long wiping action
• Centre polarization key to prevent mismating
• Centre locking ramp for secure mating connection
• Side latches
• Strain relief available separately

Product Application Information

These Milli-Grid connectors are suitable for a wide range of wire to board signal applications. Typical applications include printers, fax machines and copiers, servers, routers and switches, automotive audio and GPS, security systems and alarms, set-top boxes and digital media players

Molex PCB Socket, Wire-to-Board Type, 12A Current Rating - 87568 Series - 87568-1493

Need a achieve to secure connection to your circuit board? This PCB socket from Molex does the job. Signal transfer is done in a flash, thanks to 14 copper contacts that efficiently conduct energy and ensure your system runs optimally. The unit's designed with a double row and 2mm pitch, so it's versatile and takes up minimal space in busy setups.

• Fire-retardant material means burning subsides in less than 10 seconds, for enhanced safety
• Light 0.939g weight doesn't add excess load to your setup
• 125V voltage rating suits low-power applications
• Surface mounting style and IDT termination cut down installation time

Applications

• Industrial automation
• Medical equipment
• Power supplies

Can I use this device in harsh industrial conditions?

Yes. This socket operates in a broad temperature range between -20°C and +85°C, so it's ideal for use in harsh industrial conditions.

Molex 2.0 mm Milli-Grid Interconnection System

The Milli-Grid connector system is a high density connector system based on a 2 x 2 mm grid pattern offering design flexibility for board to board and cable to board applications. The Milli-Grid family of connectors consists of shrouded and unshrouded headers, single and dual row receptacles, connector housings and crimp terminals
