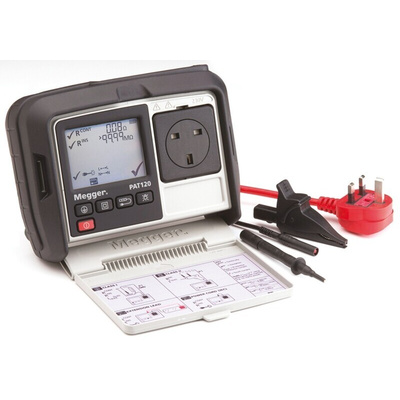

1003-062, Megger PAT120-UK PAT Tester, Class I, Class II Test Type With RS Calibration

Megger PAT Tester, 1.15kg Weight, 0.01mA Resolution - PAT100 Series - 1003-062

Take the guesswork out of equipment checks and verify the safe operation of your electrical appliances using this PAT tester from Megger. It performs various exams on your devices, including insulation, continuity and leakage tests, to pick out potential issues such as faulty wiring. This helps prolong your equipment's lifespan and keeps you out in front of hazards like electric shock and short circuits. The unit is simple to use, thanks to its automatic mode that carries out the assessments at the push of a button.

Features & Benefits

• Powered by NiMH or AA batteries, eliminating the need for a wired energy source
• Simple tick/cross and pass/fail indications for hassle-free readings
• Rubber-armoured housing with a built-in front cover improves impact resistance, making it fit for harsh environments
• Compact dimensions of 78 (H) x 148 (W) x 203mm (L) take up little space on your workbench
• Light weight of 1.15kg is easily portable

Applications

• Consumer electronics
• Supermarkets and retail stores
• Telecommunications equipment

Is this device touch-proof?

Yes. It's IP40-rated, which means it's protected from objects larger than 1mm in size for safe handling.

PAT100 SERIES Handheld portable appliance testers
