MTX3290, Metrix 3290 Handheld Digital Multimeter, True RMS, 20A ac Max, 20A dc Max, 600V ac Max - RS Calibrated, Мультиметр

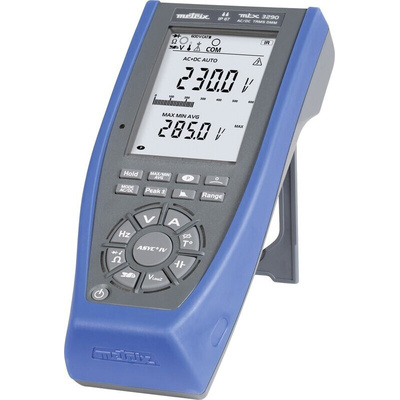

MTX3290 (ASYC IV) Digital Multimeter

MTX3290 digital display multimeters are training multimeters and are used in total safety within both electronics and electrical engineering. The MTX3290 provides direct measurement of the main electrical quantities they are compact, rugged leak proof and comfortable to hold. An easy to use multimeter providing you with surveillance of the main functions. A large LCD display, digital keyboard and lighting all in an IP67 casing.

Features and Benefits:

Extra-large digital monochrome screen (70 x 52 mm) with bargraph and display of measurements simultaneously, with 6000 counts
Intuitive digital keypad with lighting for active settings
DC, AC and AC+DC voltage
DC, AC and AC+DC current
Frequency
Resistance and continuity
Diode test
Capacitance
Clamp function with V output and direct readings
Temperature with Pt100 / 1000
Protection: IP67

Added Benefits:

Contextual reminder of connection to the screen
Current auto-ranging, single terminal up to 10 A
Secondary measurements in addition to the main measurements to enable analysis
Surveillance of the MIN/MAX and AVG data with relative time/date stamping and of voltage and current peaks
IP67 Protection against water projection and dust, excellent for outdoor environments

Power Supply:

4 x standard AA batteries
OR
4 Ni-MH batteries
Rechargeable with an HX0051B external module
400 Hours operation time on batteries

What Is Included?

Multimeter
4 x 1.5 V alkaline batteries
Cable 1.5 m long, straight/straight red
Cable 1.5 m long, straight/straight black
Red CAT IV 1 kV test probe
Black CAT IV 1 kV test probe
User guide on CD and paper start-up guide

Standards

IEC 61010-1, Cat III 600 V, Cat IV 300 V, EN61326-1

Datasheet MTX3290/MTX3291

Operating instructions MTX3290/MTX3291
