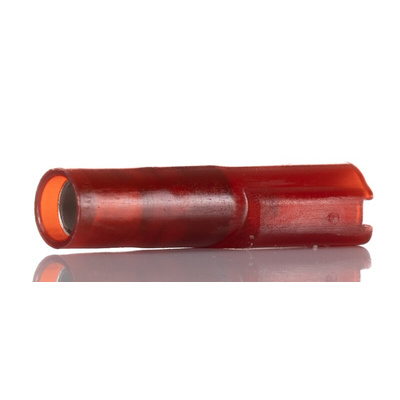

19002-0016, Molex Avikrimp 19002 Red Insulated Female Spade Connector, Receptacle, 2.79 x 0.81mm Tab Size, Обжимной контакт

Molex Avikrimp Female Quick Disconnect Terminals

These female nylon crimp receptacles are part or fully insulated, made from brass with tin plating. Flag or straight mount angle with various wire sizes and colours

Approvals

CSA,UL

Molex Spade Connector, Straight Orientation, 3.17mm Wire Insulation Diameter - 19002 Series - 19002-0016

Ever wished you could just pull cables apart during maintenance? Now you can with this quick disconnect spade connector from Molex. You can attach wires on both ends using a crimp tool to achieve a secure fit. When connected, the 4.064μm tin-plated brass contact maintains optimal signals. If you need to cut the circuit, simply disassemble the tabs. Thanks to its high 300V rating, this small but mighty unit is ideal for domestic or industrial use.

• Broad operating temperature range between -65°C and +105°C to suit harsh setups
• Nylon body is insulating, so prevents shocks when disconnecting
• Red body is easy to identify in a colour-coded system

Applications

• Manufacturing systems
• Lighting networks
• Automotive industry

What size wires fit with this connector?

This component accepts 22 to 18AWG wires, making it a multipurpose choice for your wiring needs.

Datasheet

Line Drawing - 19002-0016
