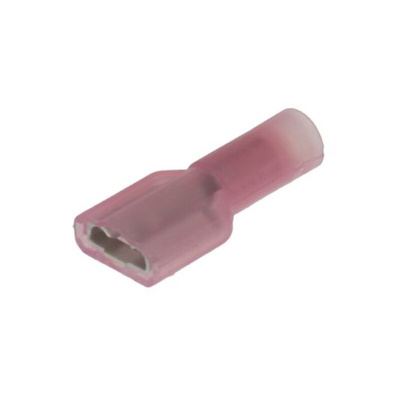

19005-0001, Molex InsulKrimp 19005 Red Insulated Female Spade Connector, Receptacle, 6.35 x 0.81mm Tab Size, Обжимной контакт

Molex InsulKrimp™ Female Quick Disconnect Terminals

These female nylon or PVC crimp receptacles are fully insulated, made from brass with a tin plating and also available in various colours and wire sizes.

Terminal cut off location
Wire stop
Nylon 6/6 or PVC
Straight mounting angle

Approvals

CSA, UL

Molex Spade Connector, Straight Orientation, 1.089g Weight - 19005 Series - 19005-0001

Need a no-fuss, no-mess way to disconnect cables? Use this InsulKrimp spade connector from Molex. It lets you unplug wires in a snap for maintenance and safety reasons. As the insulating nylon body stops shocks in their tracks, you can handle the unit with confidence. A tinned brass contact carries voltages up to 600V, making this an ideal option for use in heavy-duty industrial settings.

• Wide operating temperature range between -65°C and +105°C to suit demanding electrical systems
• Fits 22 to 18AWG wires, making it a versatile option

Applications

• Aviation industry
• Automotive production
• Manufacturing facilities

What are the benefits of using red connectors?

Red connectors like this one are easy to identify during maintenance. They can also be used in a colour-coded system, so you can quickly pick out which wire is which.

Datasheet

Line Drawing - 19005-0001
