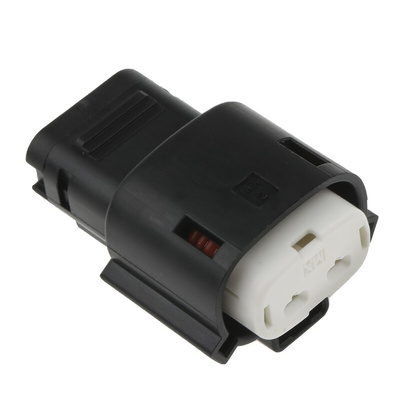

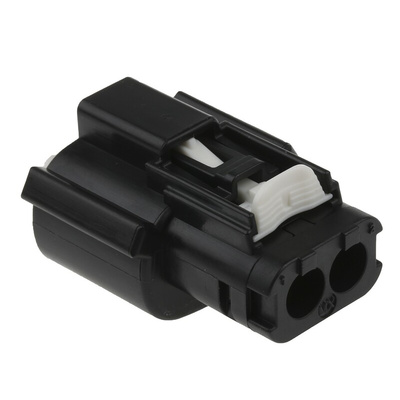

19432-0013, Molex, 19432 2 Way Crimp Terminal Housing, Black, Крышка

8221514
Номер производителя: 19432-0013Производитель: Molex
Цена за шт.
2589.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

MX150L Receptacle Housing

Receptacle housing from the 19432 series available as a 2 or 4 contacts option. Mates with 19433 series male plug.See stock no 822-1511

Approvals

CSA, UL

Molex Crimp Terminal Housing, 30A Maximum Current, 12 to 10AWG Wire Sizes - 19432 Series - 19432-0013

Need to keep electrical connections safely under wraps? This 2-way crimp terminal housing from Molex provides insulation to protect users and equipment from electrical current. The integrated mat seal keeps out water and other liquid contaminants so your connections stay dry. A broad operating temperature range of -40°C to +125°C makes this housing a reliable option for use in harsh settings.

• Rated up to 30A so it can handle strong currents
• Glass-filled PBT receptacle is resistant to chemicals, for safe use in factory settings
• Supplied pre-assembled to make set-up a breeze
• Glass-filled PBT receptacle can be relied upon for dimensional stability and mechanical strength

Applications

• Offshore electronics
• Construction industry
• Factory systems

How do I know if I've wired this device correctly?

Integrated locking latches prevent improperly locked leads from seating in the final position, so you can be sure your connections are sound.

Molex MX150L Sealed Connector System

Rugged, environmentally sealed connector system tested to IEC IP 67 that supports both low level signal and power applications up to 18 amps. Applications include: automotive, industrial control, video surveillance, outdoor lighting and machine tools.

Connector housings and seals pre-assembled
2 to 10 Circuit
IP67 rated
Integral Locking Latch
14-16 and 18-22 AWG options

Техническая спецификация
pdfDatasheet
pdfLine Drawing
Длина:
26.89мм
Кол-во контактов:
2
Максимальный размер провода:
12AWG
Минимальный размер провода:
10AWG
Размер провода:
12 to10 AWG
Серийный номер:
13
Серия:
19432
Тип коннектора:
Провод
Цвет:
Черный
