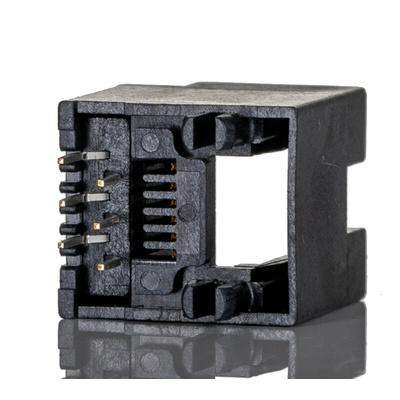

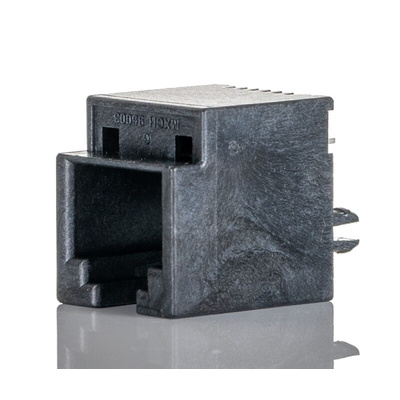

95503-2661, Molex 95503 Series Female RJ11 Connector, Through Hole, Cat3, Разъем

Molex 95503 Series Cat 3 PCB Mount Vertical Standard Profile RJ Modular Jacks

95503 series Cat 3 SMT and through hole PCB mount vertical RJ45 and RJ11 modular jacks with a standard profile (15.7 mm in height), industry standard footprint. These 95503 series cat 3 modular jacks have PCB location and retention and high reliability gold plated square contacts. The through hole PCB mounting RJ modular jacks are also SMT compatible. All models are highly reliable and excellent quality.

Approvals

UL recognised component; CSA cerfified

Molex RJ11 Connector, 6 Ways, Copper Alloy Contact Material - 95503 Series - 95503-2661

Need an easy way to wire up your telephone cables? Choose this Cat3 RJ11 connector from Molex. You pop it on a cable to connect a phone line, fax machine and dial-up internet. The thermoplastic body is resistant to chemical damage, so this is a suitable choice for use in factory settings. As it lasts for up to 2,500 mating cycles, you can be sure of the connector's reliability.

• Low net weight of ±2.5g means it doesn't put strain on your system
• Compact dimensions of 12.7 (L) x 13.21 (W) x 15.08mm (D) save space in cramped setups
• Gold-plated copper alloy contacts are highly conductive, so deliver reliable signals

Applications

• Office communication systems
• Data transmission
• Telecomms industry

Is this product suitable for use in harsh work areas?

Yes. This connector withstands temperatures between -40°C and +85°C, so you can use it safely in challenging conditions.

Datasheet

Line Drawing - 95503-2661
