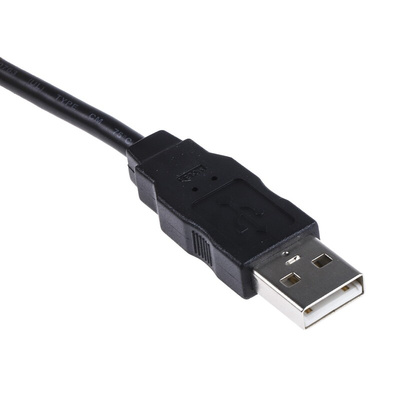

88732-8702, Molex USB 2.0 Cable, Male USB A to Male Mini USB B Cable, 1.5m

Molex Male USB A to Male Mini USB B USB Cables

Molex male USB A to male mini USB B USB cables is the ideal low-cost cable connector for industrial and commercial applications. These USB cables offer high-speed performance when you need to connect portable or mobile equipment. Molex male USB A is a standard USB interface coupled with a male mini USB B, perfect for connecting compact portable electronic devices such as cameras and phones to a computer or charger.

Features and Benefits

• Dual Ended Connectors
• USB Type A-to-Mini-B (male to male)
• Excellent RFI/EMI performance
• Lengths: 1 to 2m
• 480 Mbps
• Black or white

On the go (OTG)

On the go feature allows your device to connect to another peripheral device to share information without the aid of a computer.

Male USB A to Male Mini USB B USB Cable Options

Length: 1 m = RS stock no: 627-2908
Length: 1 m = RS stock no: 656-3939
Length: 1.5 m = RS stock no: 822-3226
Length: 2 m = RS stock no: 800-6946

Typical Applications

Typical Applications:

USB cables are typical components used to provide a connection from computers to peripherals such as keyboards, printers, portable media players, network adapters and pointing devices. They are also used to provide electrical power to portable devices via a wall adapter or computer. There are several types of USB connectors such as:
• USB A
• USB B
• USB C
• Mini USB (A,B,C)
• Micro USB (A,B,C)

FAQ:

What does IP rating mean for USB cables?

IP (Ingress Protection) is the protection level against the intrusion of water or dust for USB cables. The IP rating is described by two numbers: e.g. IP65 where the first digit stands for SOLIDS and second for LIQUIDS materials. The higher number is the higher level of protection.

What USB cable type describes?

USB cable types can be classified into several transfer speed groups:
USB 3.1 – the most recent and the fastest available standard of USB cables. It is capable to transfer up to 10Gbps. Please, bear in mind that USB 3.1 types are not compatible with USB 2.0 or older ports.
USB 3.0 – these cables are able to work up to 5Gbps and are used in many modern devices that require multiple streams of data. USB 3.0 ports are fully backwards compatible which means USB 2.0 cables will be working with them. However, data transfer speed will be limited up to 2.0 standard.
USB 2.0 – one of the most popular USB Cable standards that allows for a transfer speed of 480 Mbps. Most of the devices on the market are compatible with this standard.

Molex Male USB A to Mini B Cable, 1.5m, USB 2.0 - 88740 Series - 88732-8702

Use this Molex USB (universal serial bus) 2.0 cable to transfer data and charge portable electrical devices such as phones and cameras. This 1.5m-long cable is highly effective at eliminating RFI (radio frequency interference) and EMI (electromagnetic interference), ensuring seamless data transfer between devices. The cable can be used to provide a connection from a computer to other portable devices, including keyboards and network hubs. Most devices on the market are compatible with this cable's standard connectors.

• Protected from electromagnetic interference for very stable data-transfer speeds
• Fitted with gold-plated mating, allowing high-performance connections and durability
• Mates with a range of standard connections widely used in portable electrical devices
• OTG (on-the-go) feature allows mobile devices and other peripherals to act as a USB host

Applications

• Charging for portable electrical devices
• Data transfer
• Home offices

What are the most common devices that use USB A to Mini B connections?

Typically, this type of Molex cable would be used to connect a computer or laptop to peripheral devices such as digital cameras. The cable makes speedy and reliable data transfer and charging possible.
