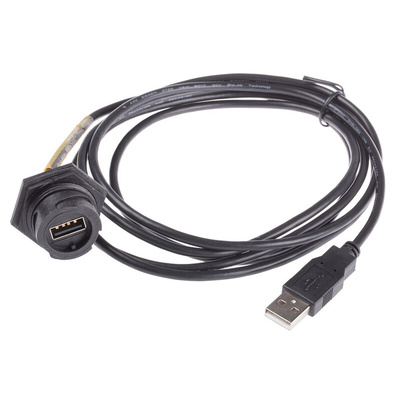

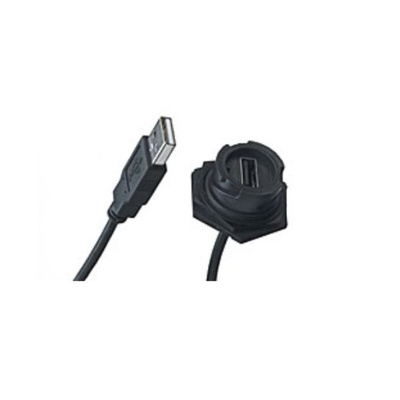

84729-0006, Molex USB 2.0 Cable, Male USB B to Female USB A USB Extension Cable, 2m

Molex Sealed Industrial USB 2.0 Type A Plug to USB 2.0 Type A Receptacle Cordsets, 84729 Series

Overmolded sealed industrial USB 2.0 type A plug to USB 2.0 type A panel mount receptacle cordsets with a bayonet style latch receptacle for quick and easy connection, keyed housing and integral strain relief for robust pull-out resistance. These sealed industrial USB 2.0 type A cordsets have a fully shielded cable for EMI/RFI protection and an IP67 rating for use in harsh factory and commercial-vehicle applications. Typical applications for these sealed industrial USB 2.0 type A plug to USB 2.0 type A panel mount receptacle cordsets include commercial vehicles, medical equipment, and industrial applications eg bardcode scanners, factory automation, industrial controllers, robotics and test quipment

Standards

ODVA and IEC61076 compliant

Molex USB Cable, Black Sheath, 1A Maximum Current Per Contact - 84729 Series - 84729-0006

Get connected – even in an awkward spot – with this Molex USB cable. When plugged into a USB 2.0 port on your PC, it lets you link a peripheral using an identical terminal at the other end. Thanks to its IP67 rating, you can be sure the assembly is dust-tight and withstands immersion in water up to a depth of 1m. At 2m long, it's handy for connecting devices set at a distance from each other.

• PBT body is resistant to impact for reliable use in demanding applications
• Low weight of 124g means minimal strain on your setup
• Maximum voltage rating of 30V AC so it's suitable for powerful electrical applications

Applications

• Industrial automation systems
• Barcode scanners
• Medical technology
• Automotive sector

Is this cable shielded?

Yes – this USB cable is fully shielded to prevent interference from nearby equipment, which boosts your signalling efficiency.

Datasheet

Line Drawing - 84729-0006
