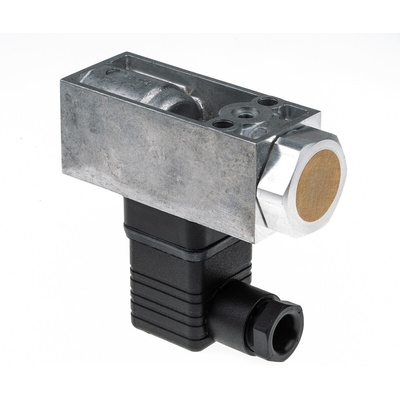

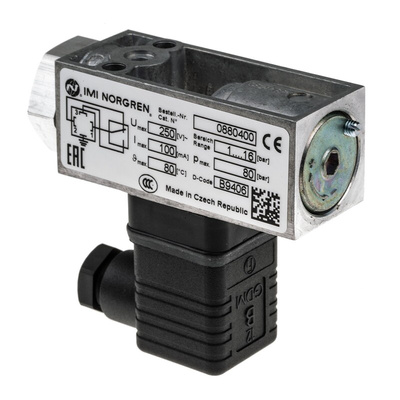

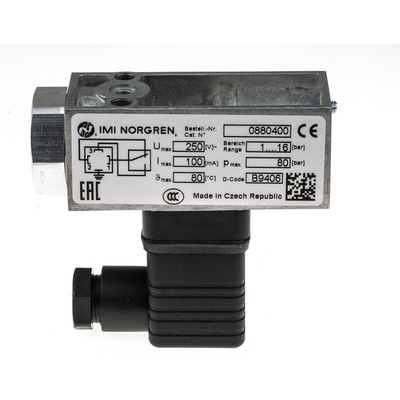

0880400000000000, IMI Norgren Pressure Switch, G 1/4 1bar to 16 bar

IMI Norgren 0880400 Multifluid Pressure Switch, G1/4, 1 to 16 Bar - 18D Series - 0880400000000000

This pressure switch from IMI Norgren is designed to regulate the flow of media in pneumatic equipment. It measures the pressure level in both bar and psi (pounds per square inch), so it's compatible with a wide range of hydraulic systems. You can use this switch in demanding applications thanks to its impact-resistant aluminium body. It has an IP65 (ingress protection) rating, so it's dust-tight and won't be damaged by contamination. An ambient operating temperature range between -10°C and +85°C makes this Norgren 0880400 switch suitable for use in demanding environments.

Features & Benefits

• Broad operating pressure range between 1 and 16 bar to effectively regulate low-pressure to mid-pressure applications
• Lightweight at 0.260kg to reduce strain on equipment
• Mechanical life cycle of 10,000,000 for long-term use
• Microswitch with gold-plated contacts is resistant to corrosion for extended service life
• DIN plug for quick tool-free mounting

Applications

• Industrial pumps
• HVAC (heating, ventilation and air-conditioning) systems

What fluids can this pressure switch measure?

This unit can measure a wide range of media including gases, liquids and non-combustible elements. This makes it suitable for diverse applications.

Pressure Switch Data Sheet

Installation Sheet - Pressure Switch 18D
