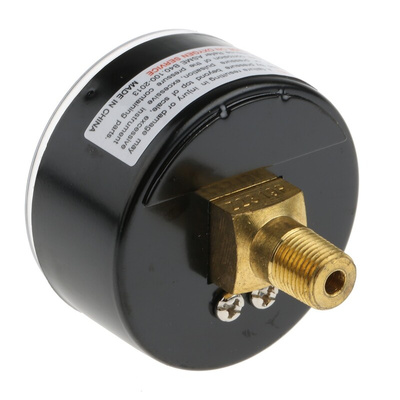

IMI Norgren R 1/8 Analogue Pressure Gauge 10bar Back Entry, 18-013-013, 0bar min., Манометр

IMI Norgren Analogue Pressure Gauge, 0 to 10 Bar, ± 2.5 % Best Accuracy - 18-013-013

Take precise pressure readings with this analogue pressure gauge from IMI Norgren. It uses a Bourdon tube to accurately measure the flow of compressed air, oil, gases and liquids, making it a versatile choice. The analogue display features black and red digits against a white background for clarity. The device doesn't need power to operate, so it's simple to use and there's no risk of electrical faults affecting the readings.

Features & Benefits

• Wide pressure measuring range of 0 to 10 bar for use in low-pressure and high-pressure systems
• Best accuracy of +2.5% for precise control of your compressed air system
• Compact outer diameter of 50mm for use in smaller pneumatic circuits and constricted areas
• Broad operating temperature range of -40°C to +65°C for use in demanding environments

Applications

• Heating and cooling systems
• Small compressors
• Robotic equipment
• Automated industrial manufacturing

What pressure units does this gauge display?

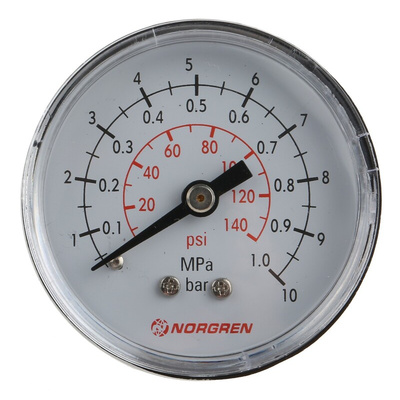

This versatile pressure gauge displays readings in both bar and psi (pounds per square inch). Bar units are printed in black and psi units are in red, so you can easily differentiate between them.
