5VS-421-800, IMI Norgren Green, Red Panel Mounting Visual Indicator, 8.6bar, G 1/8 inlet port, 30mm mount hole, Фитинг

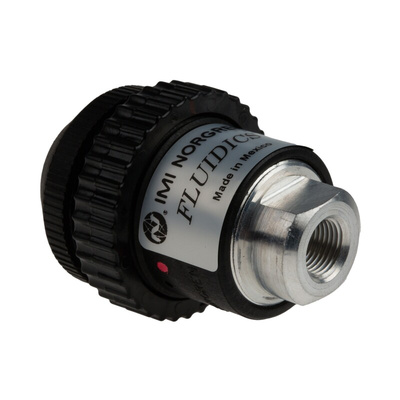

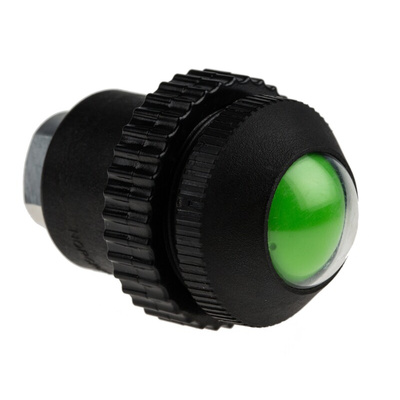

IMI Norgren Red And Green Visual Indicator, G1/8, 0.7 to 8.6 Bar - 5VS Series - 5VS-421-800

Quickly determine the absence or presence of pressure in a pneumatic circuit with this red and green visual indicator from IMI Norgren. It turns green when the correct operating pressure is reached, so you can easily inspect the performance of your compressed air system. The robust component is made from PBT (polybutylene terephthalate) plastic that's hardwearing and moisture-resistant, so can be relied on in harsh working conditions. Its acrylic lens is easy to clean and maintain while providing superior transparency for a clear visual indication from all directions.

Features & Benefits

• Wide operating pressure range of 0.7 to 8.6 bar for use in high-pressure applications
• Corrosion-resistant brass connector for longevity in moist conditions
• Hard-wearing synthetic rubber diaphragm that delivers an extended service life
• Broad operating temperature range of +2ºC to +66ºC for use in demanding industrial environments
• Actuated colour: Red
• Unactuated colour: Green

Applications

• Food and beverage manufacture
• Industrial automation
• Rail industry

Where would I mount this indicator?

This visual indicator is designed for panel mounting and needs a mounting hole size of 30mm.

Can I use this indicator with lubricated compressed air?

Yes, this versatile indicator is suitable to use with lubricated, dry and filtered compressed air.

Rotowink Pressure Indicators Data Sheet
