63800-2810, Molex Magnifier, 10X x Magnification

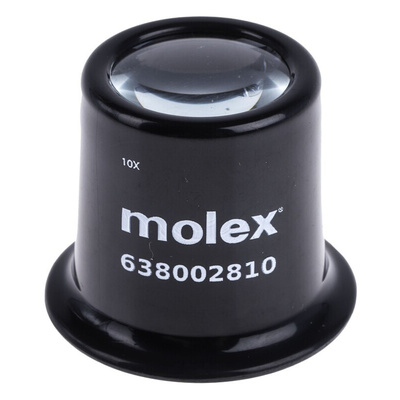

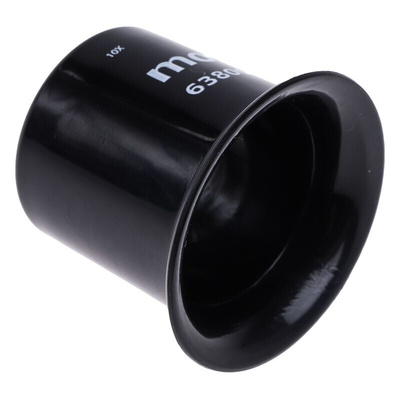

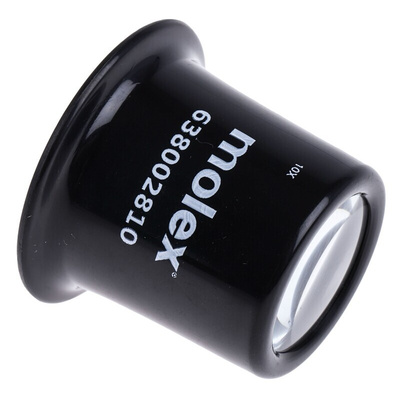

Molex Eye Loupe Magnifier, 10x Magnification - 63800-2810

This magnifier from Molex makes small crimp terminations easier to see and inspect. It magnifies objects to 10 times their size, so allows for the faster detection of tiny connection faults. The unit's lens is made from ground and polished clear optical glass to offer reliable clarity. Its body is constructed from lightweight plastic, making it portable and easy to put in your pocket or tool bag as you move around a worksite.

• Allows for close inspection and helps to improve the manufacturing quality of printed circuit boards (PCBs)
• Reduces maintenance and downtime through early fault detection and rectification

Applications

• Automotive industry
• Construction vehicles
• Printing and textile industries

How do you get the best field of vision when using this magnifier?

For the best field of vision, hold the magnifier approximately 25mm away from your eye. This lets you view a larger surface area while also achieving optimal magnification. If the magnifier is too far away from your eye, your field of vision is limited.

Do I only look through one eye when using this magnifier?

While only one eye looks through the magnifying glass, it's recommended that you keep you other eye open. This helps to prevent unnecessary strain.

Datasheet

Eye Loupe Instruction Sheet
