63812-0800, Molex Insertion Tool, T9999 Series, Pin, Socket Contact, Инструмент для вставки

Molex PremiumGrade T9999 Tooling

Molex T9999 PremiumGrade series of tools provides the user with various options of high quality tooling to ensure your application is covered.

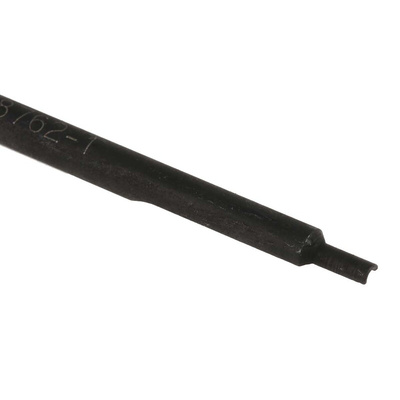

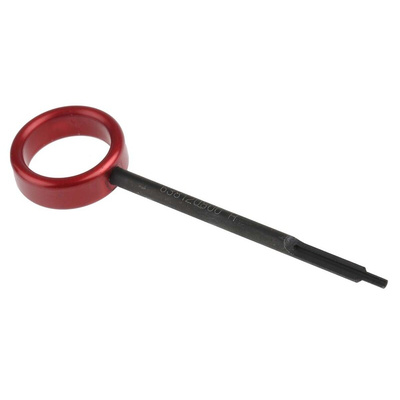

Molex Insertion Tool, 30 to 20AWG - T9999 Series - 63812-0800

Use this precision tool from Molex to firmly seat crimp terminals in plug and receptacle housings. It features a full ratcheting cycle to help you achieve complete crimps, ensuring a secure hold. The tool is simple to use. Just place the wire in the groove located on the flat side of the tool so that the wire touches the end of the pin, then secure the wire with your finger before inserting into the housing. The pin accommodates both male and female crimp terminals, making it a versatile choice.

• Suitable for right and left-handed applications for ease of use
• Ergonomically designed soft-grip handles for greater comfort and more precise control
• Accommodates wire sizes ranging from 30 to 20AWG (American Wire Gauge) for use in a variety of applications

Applications

• Robotics
• Automotive manufacturing
• Food processing
• Energy systems

What are the advantages of a crimp connection?

A crimp connection uses pressure to join wires together and achieve an air-tight seal. This prevents damage from moisture or debris to ensure a stronger, more reliable electrical connection.

Molex PremiumGrade Series

Part of the T9999 series of hand crimp tools.

SCOPE Products: 2.36mm (.093") Diameter, Standard .093" Pin and Socket Crimp Terminals, 18-22 AWG,
Claspcon Pin and Socket Crimp Terminals, 16-24 AWG, and Commoning Terminals, 18-22 AWG

A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
This tool is RoHS compliant, however RoHS compliant is not required

Datasheet

Insertion Tool Specification Sheet
