63819-0275, Molex, T9999, 63819 Locator

Molex PremiumGrade T9999 Tooling

Molex T9999 PremiumGrade series of tools provides the user with various options of high quality tooling to ensure your application is covered.

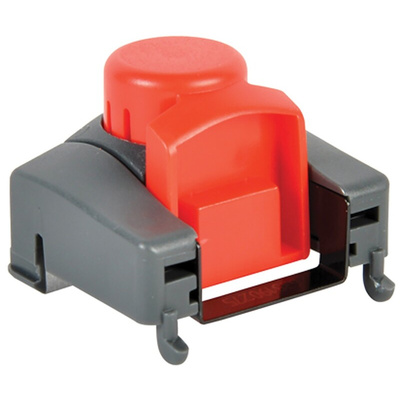

Molex Crimping Tool Locator, 28 to 22AWG Wire Sizes, Full Cycle Ratcheting - T9999 Series - 63819-0275

Get a handle on precise electrical terminations with this crimping tool locator from Molex. It's a manual device designed to guide the position of a terminal or connector during the crimping process. The button is a cinch to operate as you simply push and release until you reach your desired position. Along with the wire stop feature of your accompanying crimping tool, this locator makes sure you get precise results every time.

• Unit weight of 29g so your crimping tool stays light in your hand
• Can be used by both right-handers and left-handers for convenience

Applications

• Automotive industry
• Medical devices
• Telecommunications networks

What do I do if the tool gets jammed?

If the tool jams in a partially closed position, don't force the handles. Instead, use the ratchet release lever to open the tool with ease.

Molex PremiumGrade Series

Part of the T9999 series of hand crimp tools.

SCOPE Products: 2.36mm (.093") Diameter, Standard .093" Pin and Socket Crimp Terminals, 18-22 AWG,
Claspcon Pin and Socket Crimp Terminals, 16-24 AWG, and Commoning Terminals, 18-22 AWG

A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
This tool is RoHS compliant, however RoHS compliant is not required
