63819-0075, Molex, T9999, 63819 Locator

Molex PremiumGrade T9999 Tooling

Molex T9999 PremiumGrade series of tools provides the user with various options of high quality tooling to ensure your application is covered.

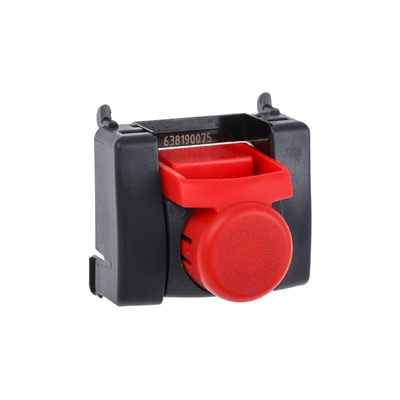

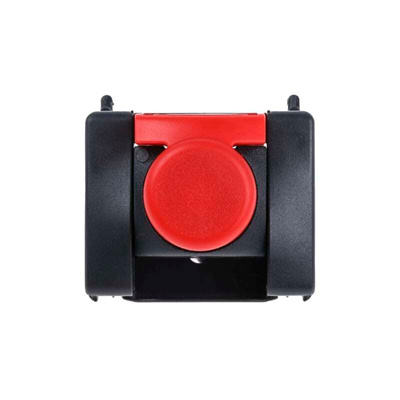

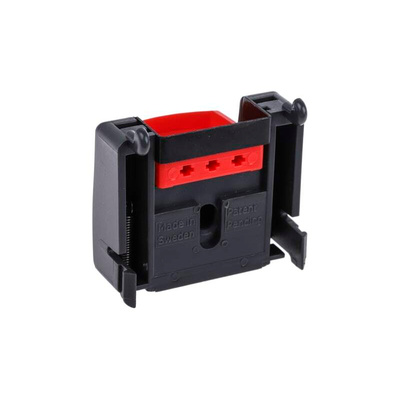

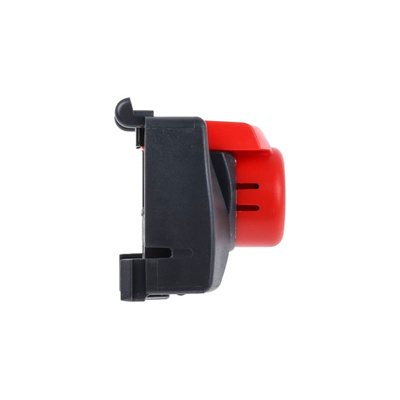

Molex Terminal Locator Assembly - 63819 Series - 63819-0075

This hand crimp tool component from Molex is used to precisely determine proper crimping positions for wires. It works by creating a reference point for the terminal on the crimper, then holding it firmly in place so you can accurately insert the wire and secure it. For ease of use, there's an integrated quick-release button. As it's made of a highly durable thermoplastic material, this locator delivers a long service life for both industrial and DIY applications.

• Can be applied to both right and left-handed crimp operations for increased versatility
• Top hooks latch securely to the tool and slip out after use for ease of connection and disconnection
• Locator button coloured red for easy identification

Applications

• Integrated circuit design
• Network cable setup

How do I use this locator?

First, clip it to the crimping tool with the top hooks, ensuring its centre is in the down position. Once it's attached, push the locator button on the back of the hand tool to bring it forward through the tooling. While holding the button, load the terminal into the proper nest and then release it so the locator returns to the crimping position.

Molex PremiumGrade Series

Part of the T9999 series of hand crimp tools.

SCOPE Products: 2.36mm (.093") Diameter, Standard .093" Pin and Socket Crimp Terminals, 18-22 AWG,
Claspcon Pin and Socket Crimp Terminals, 16-24 AWG, and Commoning Terminals, 18-22 AWG

A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
This tool is RoHS compliant, however RoHS compliant is not required
