64016-0200, Molex ServiceGrade Hand Ratcheting Crimp Tool for Mini-Fit HCS Connector Contacts, Mini-Fit Jr. Connector Contacts, Обжимные клещи

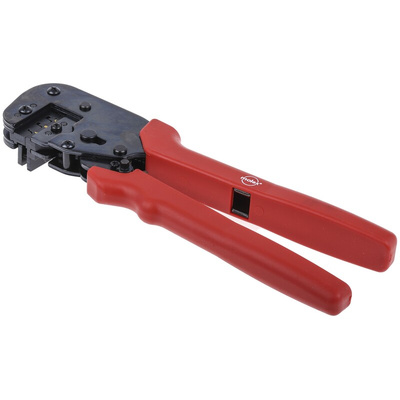

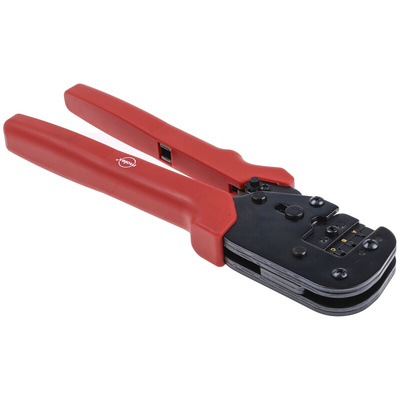

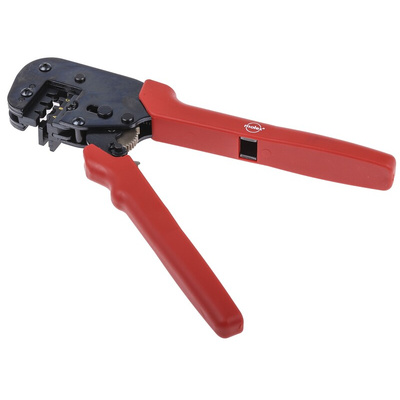

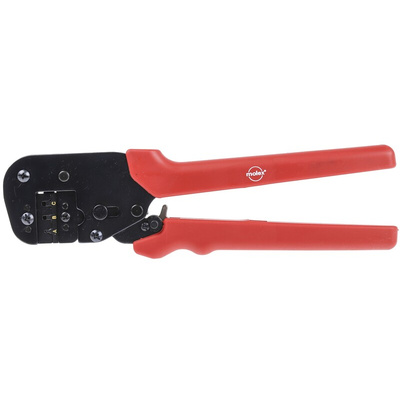

Molex ServiceGrade Hand Crimp Tool - Mini-Fit Terminals

A ServiceGrade hand crimping tool designed for use with Mini-Fit Junior and Mini-Fit HCS male and female crimp terminals with a wire size range of 28 AWG to 16 AWG. This ServiceGrade hand crimping tool features a full cycle ratchet mechanism which ensures a full crimp is achieved. Soft grip ergonomic handles make the tool comfortable to use.

Features and Benefits

• Full cycle ratchet for a complete crimp
• Soft grip ergonomic handles

Product Application Information

This ServiceGrade crimp hand tool is for use in field repair for a limited number of terminations

Molex Ratcheting Hand Crimping Tool, 28 to 16AWG - T9999 Series - 64016-0200

Use this crimping tool from Molex to firmly secure cables to their connectors. It's operated manually and features a full-cycle ratchet mechanism that gives you a complete crimp, so wires won't come loose even in vibrating systems. For accurate crimping, this tool has a user-friendly wire stop that keeps terminals in the proper position. The soft grip handles are comfortable to use, whether you're left-handed or right-handed. You can use this crimping tool for applications including telecommunication and networking systems.

• Broad wire size range of 28 to 16AWG (American Wire Gauge) for versatile use
• Robust nylon handle material for reliable long-term use

Applications

• Domestic wiring
• Commercial electrical systems
• Data networking

How do I maintain this crimping tool?

To maintain this crimping tool, remove dust, moisture and other contaminants with a soft, lint-free cloth. Lubricate all the pins and pivot points with a thin film of oil. Clean off excess oil with the soft cloth, paying particular attention to the crimping area.

Will this tool protect me from electric shocks?

This tool has rubber handles that provide insulation, but can't guarantee complete protection against electrical shock. Never carry out crimps on active electrical circuits.

Molex PremiumGrade Series

Part of the T9999 series of hand crimp tools.

SCOPE Products: 2.36mm (.093") Diameter, Standard .093" Pin and Socket Crimp Terminals, 18-22 AWG,
Claspcon Pin and Socket Crimp Terminals, 16-24 AWG, and Commoning Terminals, 18-22 AWG

A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
This tool is RoHS compliant, however RoHS compliant is not required

Datasheet

ServiceGrade Hand Crimp Tool Specification Sheet

Visual Inspection of Crimp Terminals

Quality Crimp Handbook

Molex Mini-Fit Connector Datasheet
