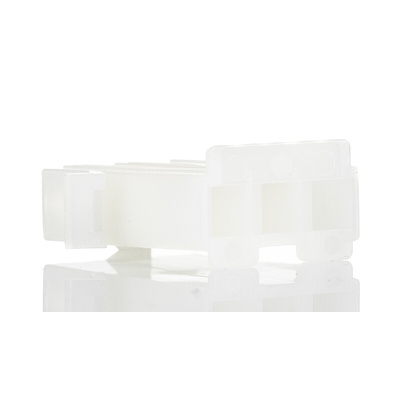

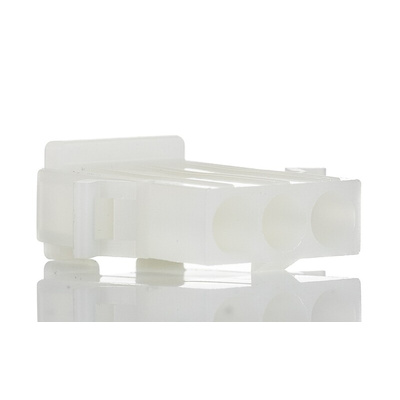

19-09-2038, Molex, STANDARD .093" Male Connector Housing, 6.7mm Pitch, 3 Way, 1 Row, Корпус разъема

Molex 2.36mm Diameter Standard .093" Pin and Socket Plug Housings - 3191 Series

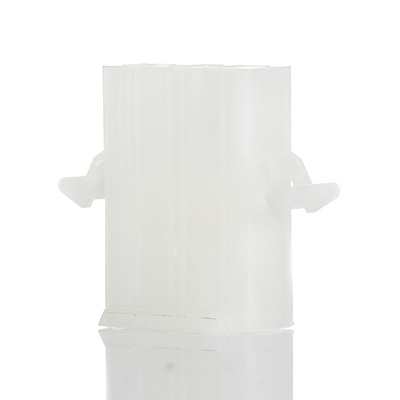

3191 series 6.71mm pitch plug housings that accept industry standard 2.36mm diameter .093" male pin and female socket terminals. These 2.36mm pin and socket plug housings are made from 94V-2 nylon, have positive locking, fully isolated terminals and are polarized to ensure secure mating. Stock number 236-3173 also has pre-bent mounting ears. These 3191 series industry standard 2.36mm diameter .093" pin and socket plug housings are suitable for use in medium power applications ie consumer devices such as refigerators and microwave ovens, data communications applications ie desktop computers, motherboards and HDDs.
For mating connectors see series 3191 2.36mm diameter standard .093" pin and pocket receptacle housings - stock number 236-3066 typically
For .093" crimp terminals see stock number 670-1847 and 670-2248 typically
For crimp tool see stock number 501-045

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex Connector Housing, 3.716g Net Weight, 11A Current Rating - 3191 Series - 19-09-2038

Need to keep your electronics safe and sound? This connector housing from Molex can handle the job. Use it to protect crimp connections and prevent damage caused by environmental factors such as moisture, dust and vibration. The unit's nylon construction means it resists wear and tear, so you can rest assured it stands the test of time. With three contacts, the unit provides redundancy, so if one fails, the other two still provide a reliable connection.

• Compact dimensions of 21.59 (L) x 30.15mm (W) for use in confined setups
• For use with male crimp terminals, including those in the 1190, 1381 and 2606 series
• Wide operating temperature range between -40°C and +105°C to handle extreme environments

Applications

• Automotive industry
• Communications systems
• Consumer electronics
• Medical devices

How do I install this housing?

You can mount it directly on a panel to achieve speedy and secure installation.

Molex 2.36mm Diameter Standard .093" Pin and Socket Range
