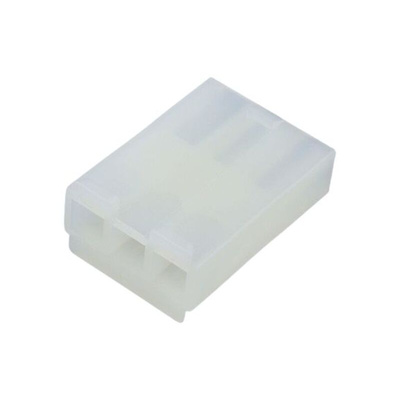

19-09-2039, Molex, STANDARD .093" Female Connector Housing, 6.7mm Pitch, 3 Way, 1 Row, Корпус разъема

Molex 2.36mm Diameter Standard .093" Pin and Socket Plug Housings - 3191 Series

3191 series 6.71mm pitch plug housings that accept industry standard 2.36mm diameter .093" male pin and female socket terminals. These 2.36mm pin and socket plug housings are made from 94V-2 nylon, have positive locking, fully isolated terminals and are polarized to ensure secure mating. Stock number 236-3173 also has pre-bent mounting ears. These 3191 series industry standard 2.36mm diameter .093" pin and socket plug housings are suitable for use in medium power applications ie consumer devices such as refigerators and microwave ovens, data communications applications ie desktop computers, motherboards and HDDs.
For mating connectors see series 3191 2.36mm diameter standard .093" pin and pocket receptacle housings - stock number 236-3066 typically
For .093" crimp terminals see stock number 670-1847 and 670-2248 typically
For crimp tool see stock number 501-045

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex STANDARD .093" Series Connector Housing, Nylon, Straight - 19-09-2039

This connector housing, with its straight, male design and nylon construction, is a versatile component that is ideal for use in various automation, electronics, electrical, and mechanical applications. Its surface mount capability, standard .093" size, and three contacts make it a reliable choice for professionals in these industries.

Features & Benefits

• Straight design for easy installation and connection
• Male connector for compatibility with a variety of applications
• Nylon housing material for durability and reliability
• Surface mount option for flexible mounting choices
• Standard .093" size for universal compatibility
• Three contacts for efficient connectivity in complex systems
• Molex 3191 series for high quality performance

Applications

• Ideal for use with 1973, 2151, 2273, 2605, 2606, 2870, 2871, 4272, 1189 Crimp Terminals, 1190 Crimp Terminals, 1380 Male Crimp Terminals, 1381 Female Crimp Terminals, 1433 Crimp Terminals, and 1434 Male Crimp Terminals
• Suitable for automation, electronics, electrical, and mechanical industries

Can it be used with various crimp terminals?

Yes, it is compatible with a wide range of crimp terminals for versatile connectivity options.

Will it fit standard .093" connector applications?

Yes, the connector housing is designed to fit standard .093" connector applications for seamless integration.

Is it suitable for male connector requirements?

Yes, the male connector housing is designed to meet male connector specifications for efficient connectivity.

Molex 2.36mm Diameter Standard .093" Pin and Socket Range
