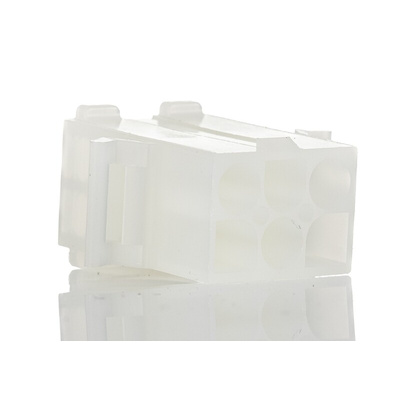

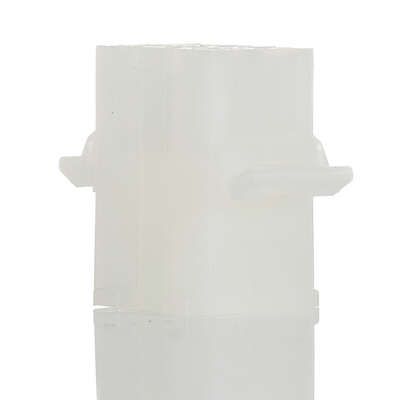

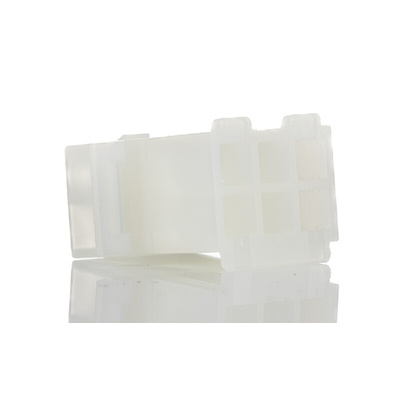

19-09-2068, Molex, STANDARD .093" Male Connector Housing, 6.7mm Pitch, 6 Way, 2 Row, Корпус разъема

Molex 2.36mm Diameter Standard .093" Pin and Socket Plug Housings - 3191 Series

3191 series 6.71mm pitch plug housings that accept industry standard 2.36mm diameter .093" male pin and female socket terminals. These 2.36mm pin and socket plug housings are made from 94V-2 nylon, have positive locking, fully isolated terminals and are polarized to ensure secure mating. Stock number 236-3173 also has pre-bent mounting ears. These 3191 series industry standard 2.36mm diameter .093" pin and socket plug housings are suitable for use in medium power applications ie consumer devices such as refigerators and microwave ovens, data communications applications ie desktop computers, motherboards and HDDs.
For mating connectors see series 3191 2.36mm diameter standard .093" pin and pocket receptacle housings - stock number 236-3066 typically
For .093" crimp terminals see stock number 670-1847 and 670-2248 typically
For crimp tool see stock number 501-045

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex Connector Housing, 7.382g Weight, Straight Body Orientation - 3191 Series - 19-09-2068

Safeguard your crimp connectors from damage with this housing from Molex. Since it's made of nylon, it's resistant to tearing and wear, so you can trust it to stay the course in harsh settings. As it mounts straight onto a panel, you get a secure and reliable joining solution without any fuss. Six contacts and two rows allow for a high connection density, reducing clutter and streamlining your setup.

• Wide operating temperature range between -40°C and +105°C to handle demanding environments
• Versatile option for use with 1973, 2151 and 2273-series crimp terminals
• Compact dimensions of 30.15 (W) x 21.6mm (D) to slot seamlessly into busy setups

Applications

• Renewable energy systems
• Marine industry
• Consumer electronics

What current rating does this housing have?

The unit has a maximum current rating of 9A per contact, ensuring wide compatibility.

Molex 2.36mm Diameter Standard .093" Pin and Socket Range

Datasheet

Line Drawing
